Post-mortem analysis

Main objectives of the practice

  • Analyze the evidence provided by different artifacts in Windows operating systems.

PART A

1. Regarding prefetch

  • What are they?
    These are files generated by Windows that contain data about executed programs.

  • What file extension do they have?
    .pf

  • In which directory can they be found?
    The default path for prefetch files is C:\Windows\Prefetch.

  • What forensic information do they store that may be important for an investigation?
    They allow reconstruction of user activity, showing a chronology of executed programs and sometimes how many times they were run.

2. Regarding LOGs

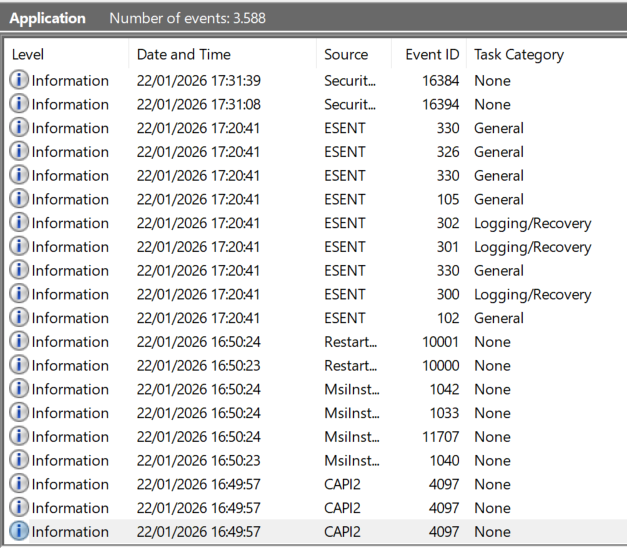

  • Which ones do you think are the most important based on the content they store?
    Application logs are the most important for forensic analysis, as they show user actions. In enterprise environments, system logs are also crucial to check for damage caused by malware.

  • Where can they be found?

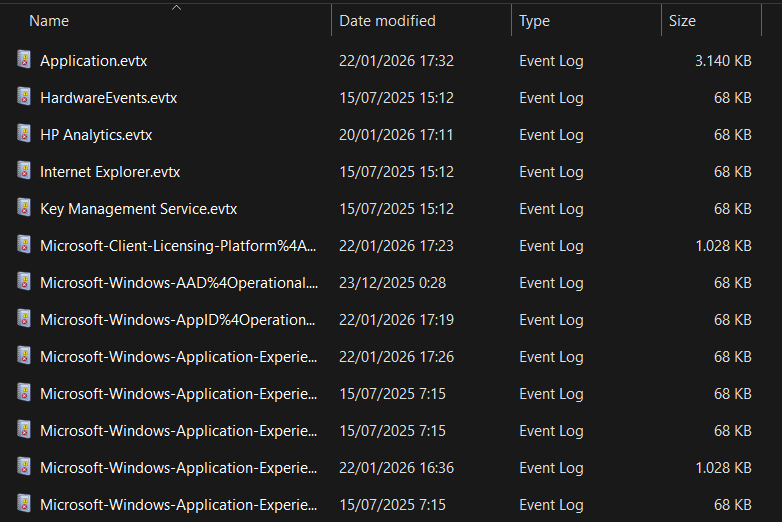

    System logs are located at C:\Windows\System32\winevt\Logs.
    These logs record security events, system events, and application events.

3. Regarding the hibernation file hiberfil.sys

  • Where can it be found?
    The typical location is the root of the disk: C:\.

  • Which tool can be used to decode its contents?
    Rekall, Volatility, or WinDbg (Microsoft Windows Debugger), among others.

  • Do you think the information it contains is important?
    Yes, it contains a snapshot of RAM when the system enters hibernation, potentially holding sensitive user data and system state.

4. Regarding snapshots, restore points and/or Volume Shadow Copies Service (VSS)

  • What file system is required to use this technology?
    NTFS

  • Is it enabled by default or does the user need to activate it?
    It is enabled by default, but periodic snapshots are not configured automatically.

  • How often are they created?
    They are typically created during major installations or updates.

  • Think of a couple of scenarios where they may be useful:

  1. Recovering the system after a ransomware attack.

  2. Undoing changes caused by faulty driver updates.

6. Events of forensic interest

  • What types of events may be interesting to inspect from a forensic perspective? Give a couple of examples:
    Security events: Track user logins.
    System events: Track software installations and failures.

7. Software tools

Tools for each artifact:

PART B

The practice consists of extracting as much evidence as possible from a Windows operating system by performing targeted searches on the different artifacts it uses.

Although in a real scenario this would be done using a system image, for this practice it is recommended, for agility, to use the operating system installed on the student’s computer.

In my case, I will use a Windows partition that I use for a few things, but as I don’t use it a lot some hives will not exist because I do not use Windows for daily life.

Software to be used

  • A. Windows 10 (32 or 64 bits)

  • B. FTK Imager

  • C. Arsenal Image Mounter

  • D. Registry Explorer

  • E. Reg Ripper

  • F. WRR

  • G. LinkParser

  • H. JumpListExplorer

  • I. ShellbagExplorer

  • J. USB Detective

Evidence extraction

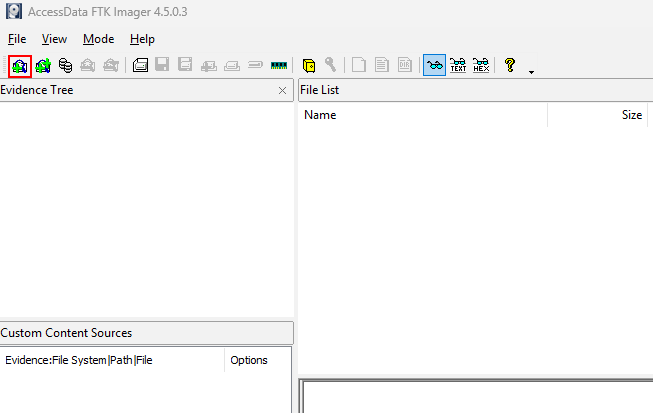

Open FTK Imager and click the image icon.
alt text
This will allow you to mount the disk image for analysis.

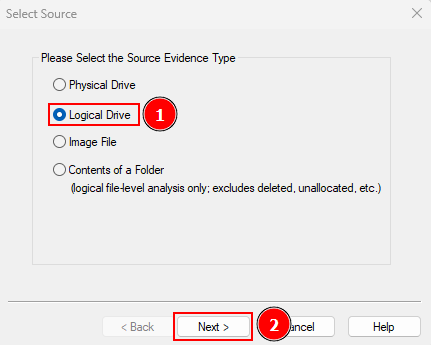

Click “Logical Drive” and click on “Next”.
alt text

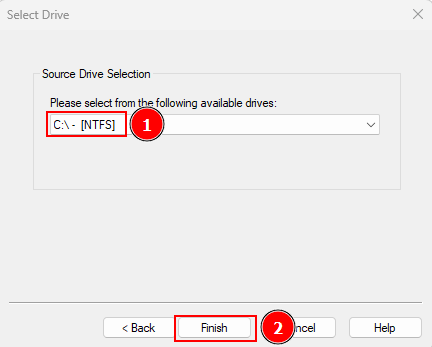

Select your disk and click “Finish”.
alt text

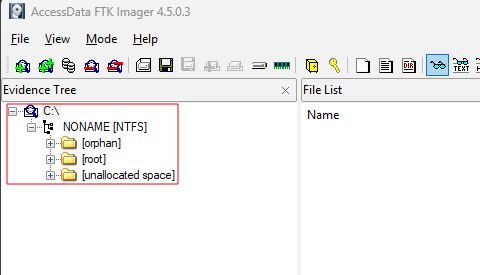

Verify the evidence tree appears in FTK Imager.
alt text

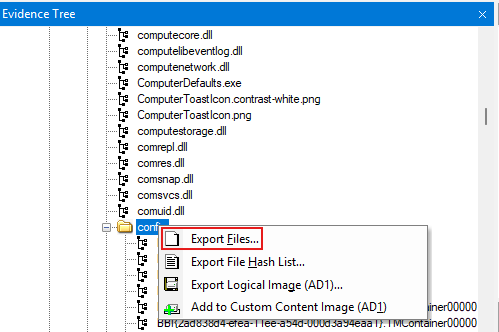

Now extract some files for analysis by navigating to \root\Windows\System32\Config\ and clicking “Export Files…”
alt text
These are critical registry hives for forensic analysis.

I’ll save them as “windows-artifacts”.
alt text

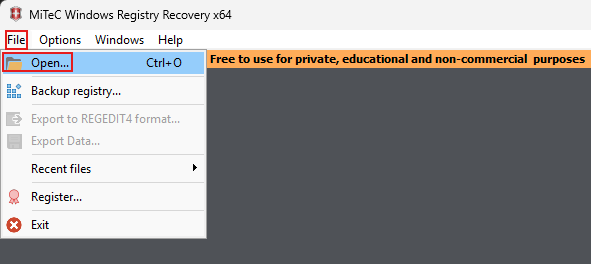

Open WRR, click “File” → “Open…”.
alt text

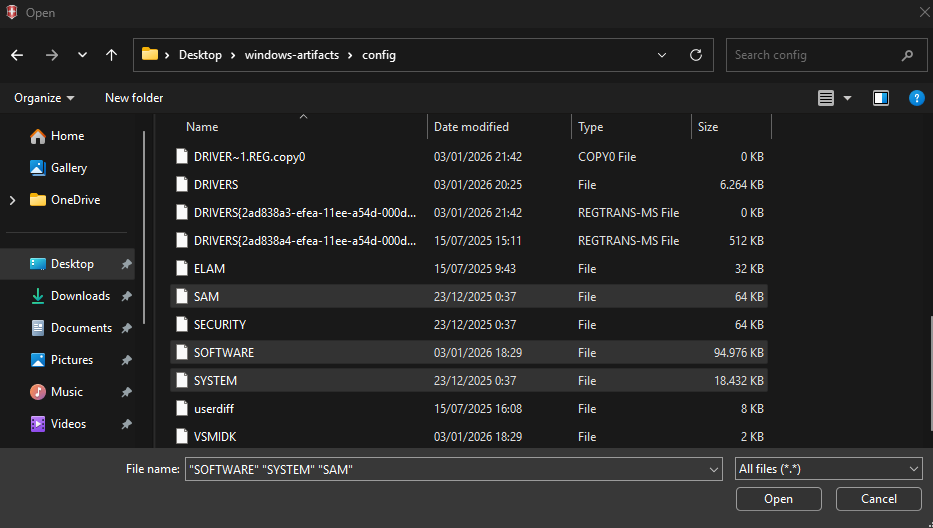

Select “SOFTWARE”, “SYSTEM” and “SAM” and click on “Open”.
alt text
These registry hives contain software settings, system info, and user account data.

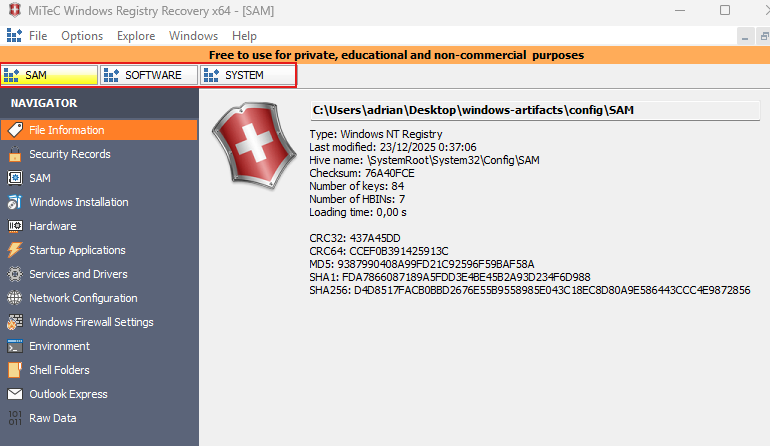

Verify files were correctly exported to WRR.
alt text

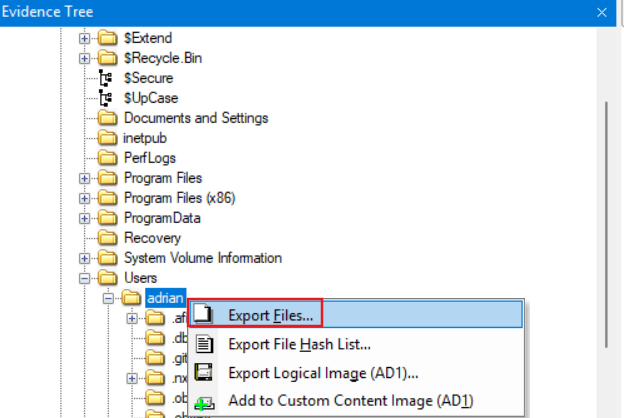

Repeat the same process for root\Windows\Users\{USER}.
alt text

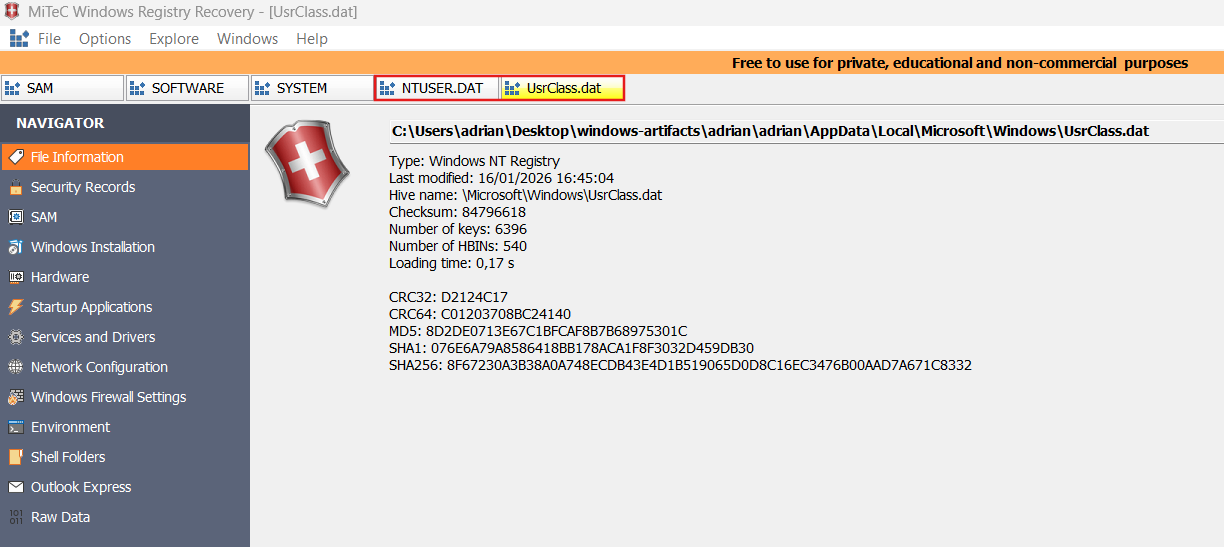

Add “NTUSER.DAT” inside {USER}\ and “UsrClass.DAT” inside {USER}\AppData\Local\Microsoft\Windows\ to WRR.
alt text

Artifacts and paths of interest

System information

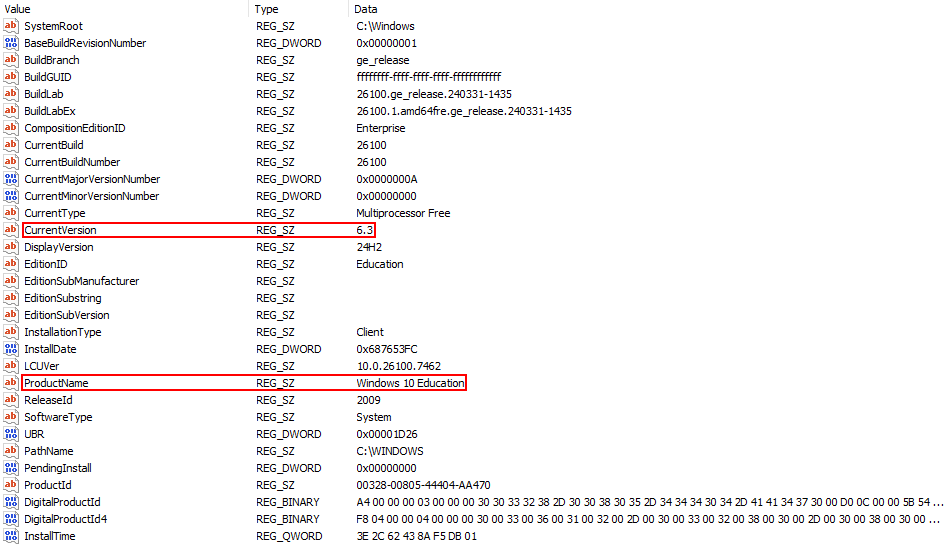

  • System version
    Software\Microsoft\Windows NT\CurrentVersion
    Shows OS version, build, and install info.
    alt text

  • Machine name
    System\ControlSet001\Control\ComputerName\ComputerName
    Stores the hostname of the computer.
    alt text

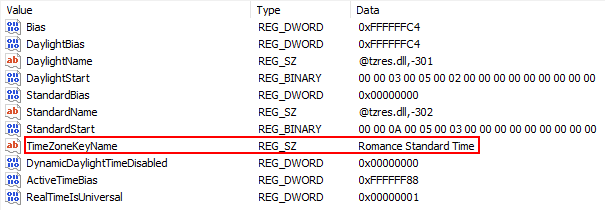

  • Time zone
    System\ControlSet001\Control\TimeZoneInformation
    Shows local time zone settings.
    alt text

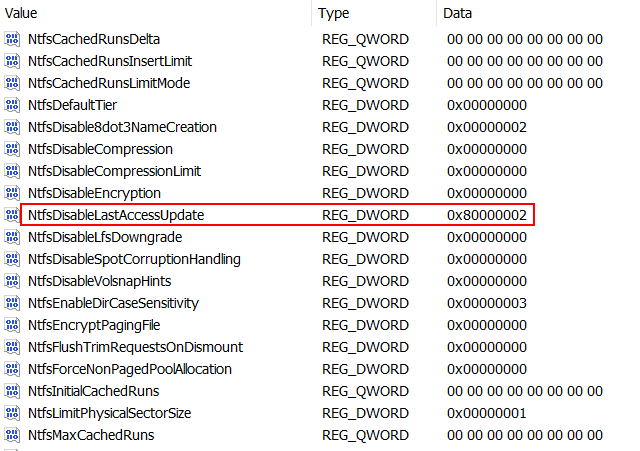

  • Last access timestamp
    System\ControlSet001\Control\Filesystem
    alt text

Controls if Windows updates the last access date of files and folders.

Value

Actual behavior

0

Updates the last access timestamp for both files and directories (legacy behavior, lower performance).

1

Does not update the last access timestamp for files or directories.

2

System managed (default since Windows Vista/7). Windows decides when to update to balance compatibility and performance.

3

Updates the last access timestamp for directories only, not for files.

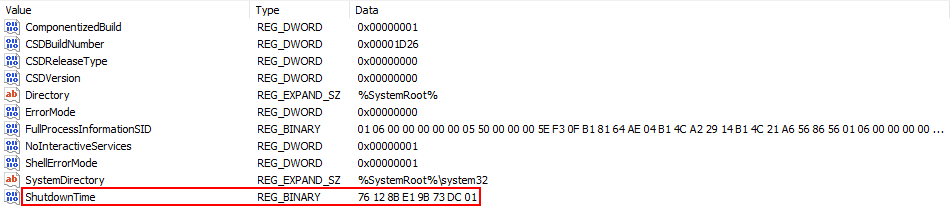

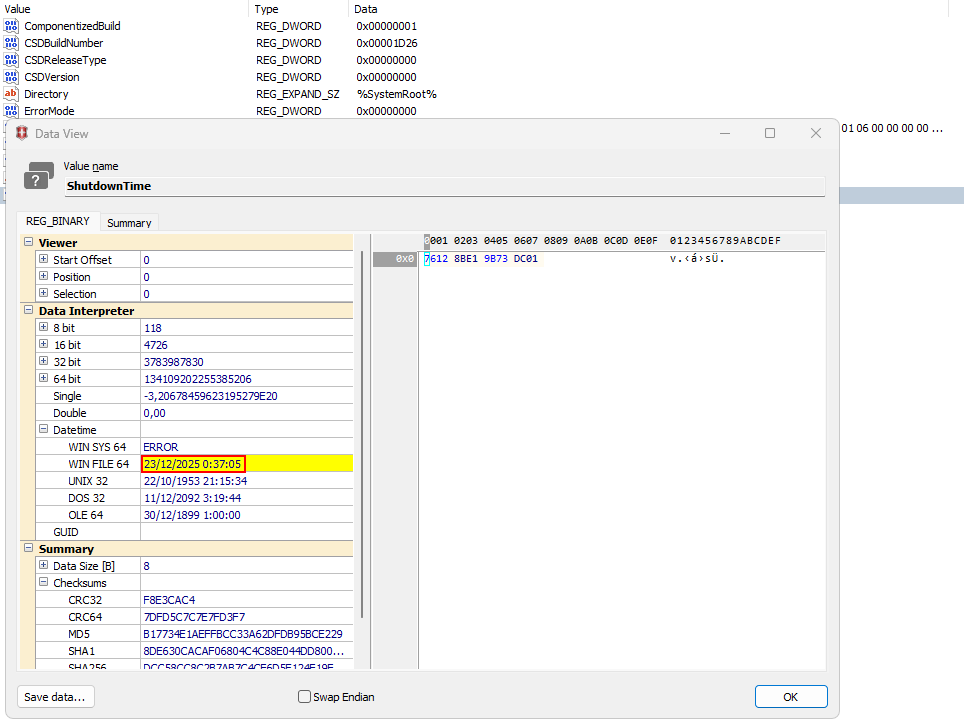

  • Shutdown time
    System\ControlSet001\Control\Windows
    Stores last shutdown or restart timestamps.
    alt text
    alt text

Network

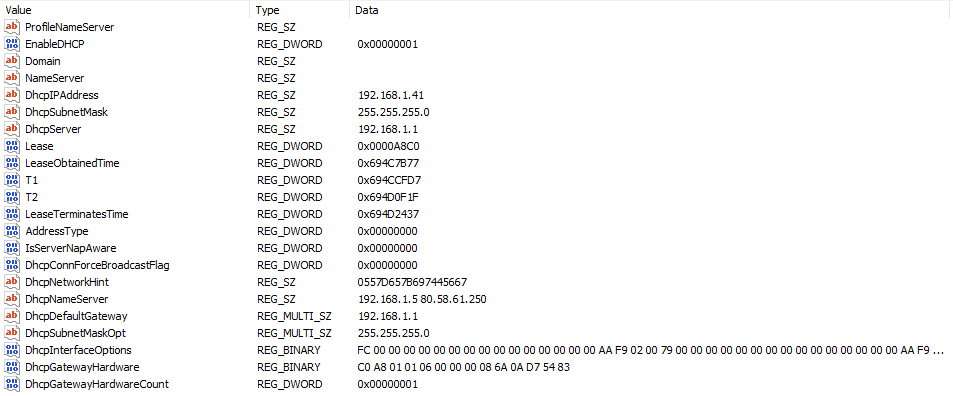

  • Network interfaces
    System\ControlSet001\Services\Tcpip\Parameters\Interfaces\{GUID_INTERFACE}
    Stores DNS root servers and whether the computer has completed the network configuration after installation.
    alt text
    alt text

  • Network history
    Software\Microsoft\Windows NT\CurrentVersion\NetworkList\
    Contains networks the computer connected to, including SSIDs.
    alt text
    alt text

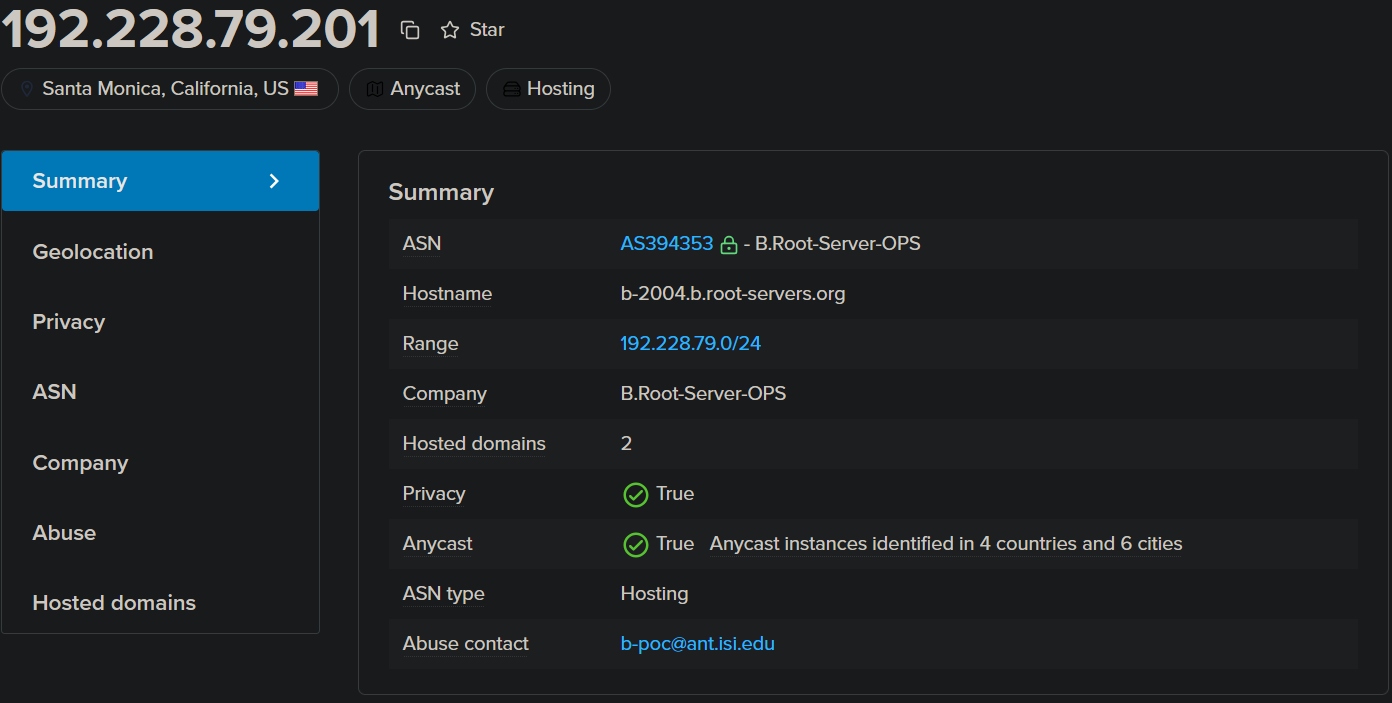

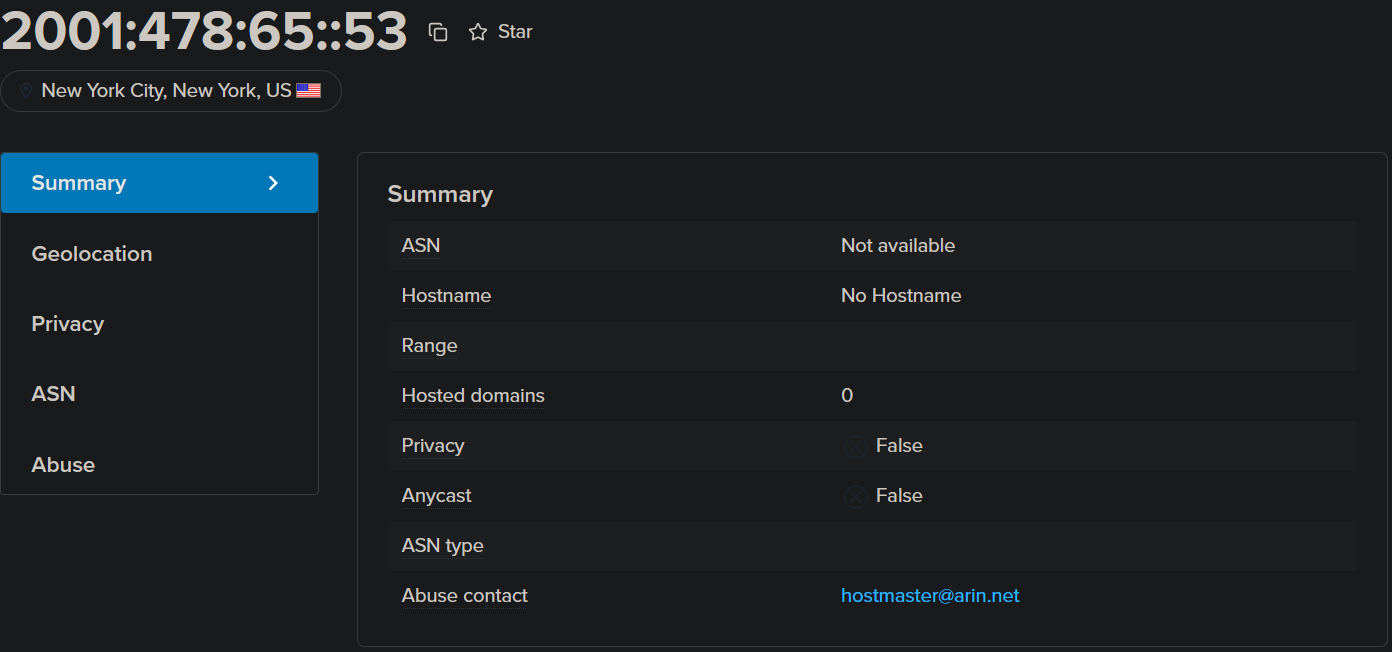

    alt text These are the root DNS

Software\Microsoft\Windows NT\CurrentVersion\NetworkList\Nla\Cache
(Not present.)
Cached information about networks.

Software\Microsoft\Windows NT\CurrentVersion\NetworkList\Nla\Wireless
Cached information about wireless networks.
alt text
alt text

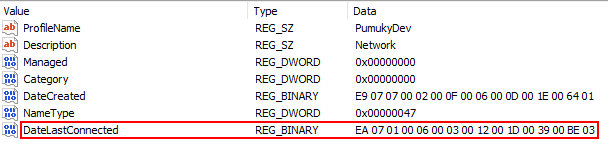

  • When a network was connected
    Software\Microsoft\Windows NT\CurrentVersion\NetworkList\Profiles
    Shows timestamps of network connections.
    alt text
    alt text

Sharing and startup

  • Shared folders
    System\ControlSet001\Services\LanmanServer\Shares\
    Lists folders shared over the network.
    alt text

  • Startup programs

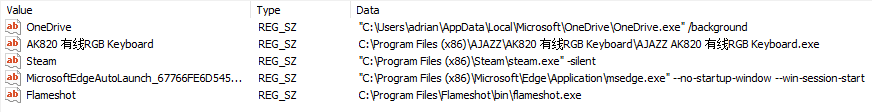

    NTUSER.DAT\Software\Microsoft\Windows\CurrentVersion\Run
    Programs set to start automatically when the user logs in.
    alt text

NTUSER.DAT\Software\Microsoft\Windows\CurrentVersion\RunOnce
Per-user programs that run once on the user’s next login.
alt text

Software\Microsoft\Windows\CurrentVersion\RunOnce
System-wide programs that run once at the next login for any use.
alt text

Software\Microsoft\Windows\CurrentVersion\Policies\Explorer\Run
Sometimes contains enforced startup items.
(Not present.)

Software\Microsoft\Windows\CurrentVersion\Run
Programs that start automatically every time the user logs in alt text

User activity

  • Searches in the search bar
    NTUSER.DAT\Software\Microsoft\Windows\CurrentVersion\Explorer\WordWheelQuery
    Stores user search queries in Windows Explorer/Start menu
    (Not present.)

  • Typed paths in Start or Explorer
    NTUSER.DAT\Software\Microsoft\Windows\CurrentVersion\Explorer\TypedPaths
    Shows file paths the user manually entered.
    alt text

  • Recent documents
    NTUSER.DAT\Software\Microsoft\Windows\CurrentVersion\Explorer\RecentDocs
    Tracks recently opened files.
    alt text
    alt text

  • Recent Office documents
    NTUSER.DAT\Software\Microsoft\Office\{Version}\{Excel|Word}\UserMRU
    Tracks recently opened Office file.
    (Not present.)

  • Reading position of last opened document
    NTUSER.DAT\Software\Microsoft\Office\Word\Reading Locations\Document X
    Stores where you left off in Word documents.
    (Not present.)

  • Autosaved Office files
    C:\Users\{user}\AppData\Roaming\Microsoft\{Excel|Word|PowerPoint}\
    Temporary autosave files for Office apps.
    (Not present.)

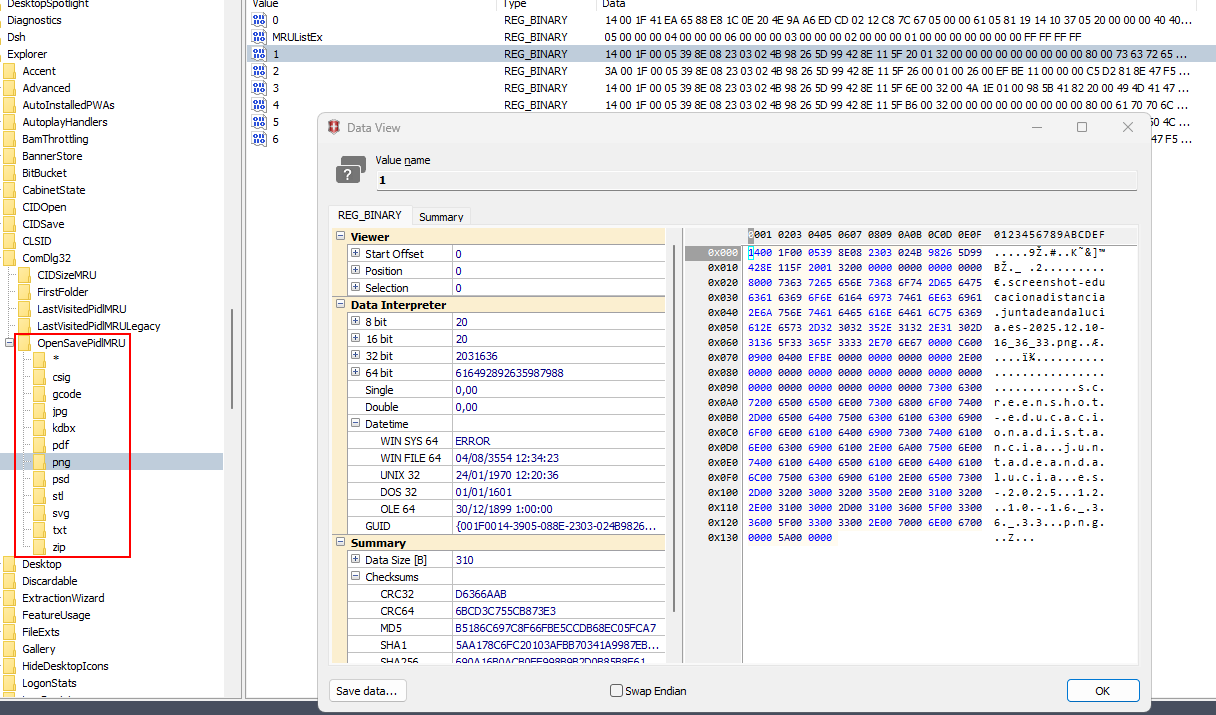

  • OpenSaveMRU
    NTUSER.DAT\Software\Microsoft\Windows\CurrentVersion\Explorer\ComDlg32\OpenSavePidlMRU
    Stores recently opened/saved files per application.
    alt text

  • Last executed commands
    NTUSER.DAT\Software\Microsoft\Windows\CurrentVersion\Explorer\RunMRU
    Tracks commands typed in Run dialog.
    alt text

NTUSER.DAT\Software\Microsoft\Windows\CurrentVersion\Explorer\Policies\RunMRU
Same as RunMRU but enforced by policies.
(Not present.)

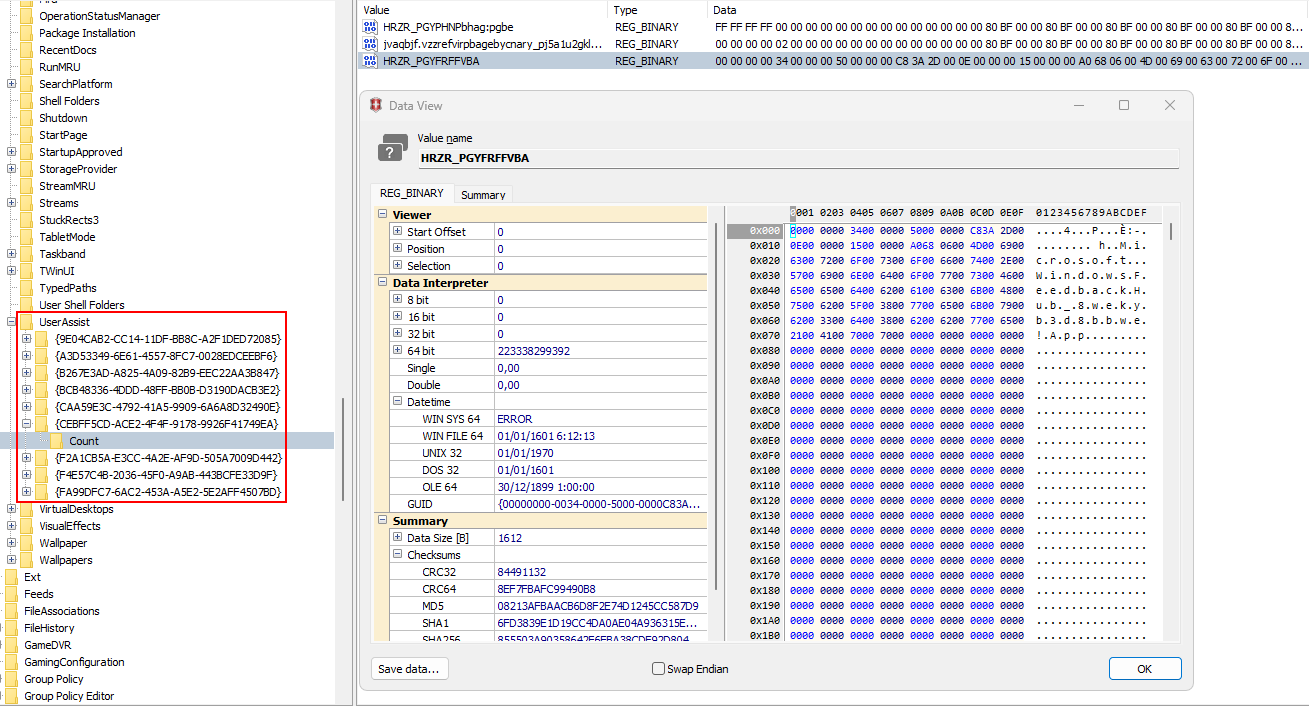

  • UserAssist (programs executed)
    NTUSER.DAT\Software\Microsoft\Windows\CurrentVersion\Explorer\UserAssist\{GUID}\Count
    Tracks execution counts of applications.
    alt text

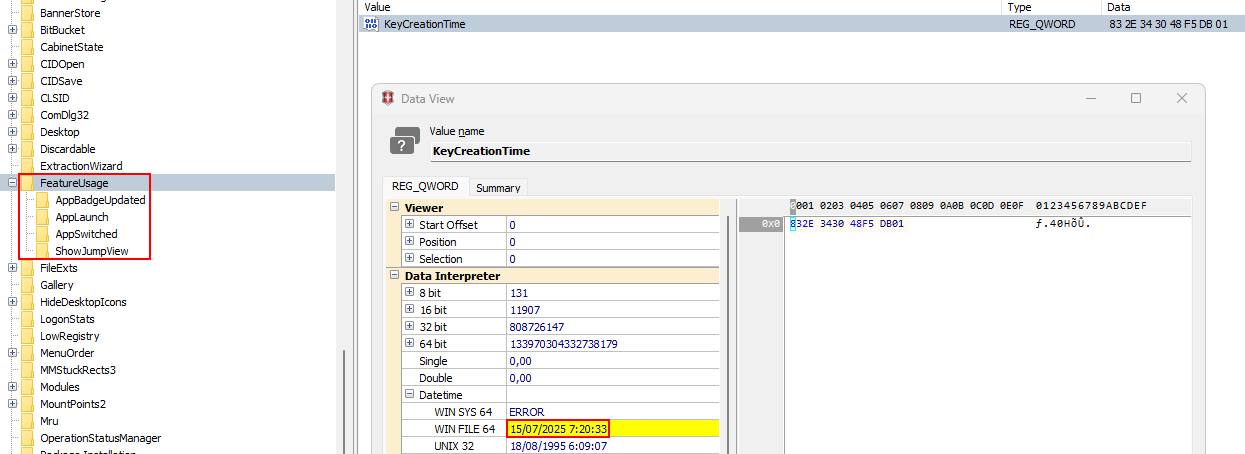

  • Taskbar-related events
    NTUSER.DAT\Software\Microsoft\Windows\CurrentVersion\Explorer\FeatureUsage
    Tracks user interaction with taskbar features.
    alt text

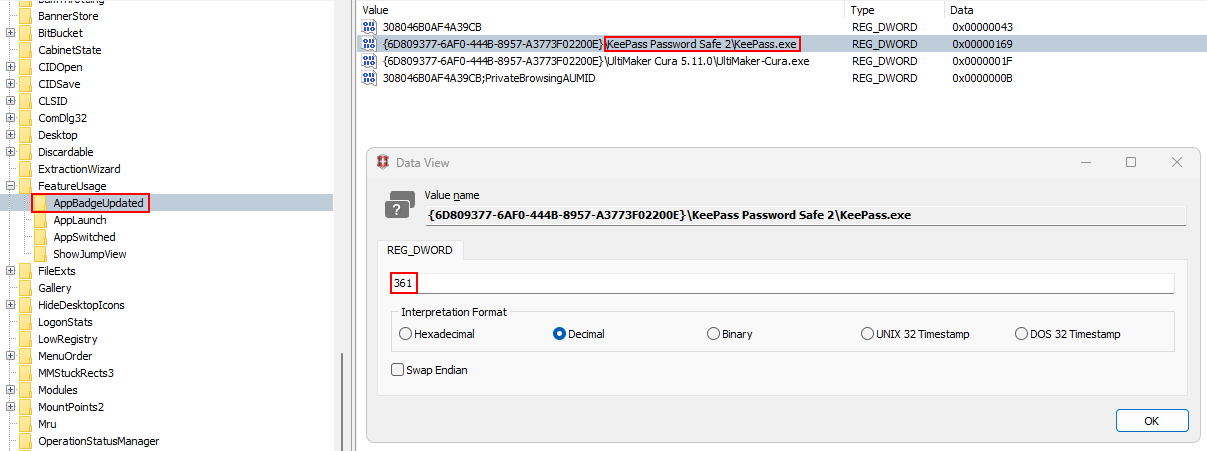

...\AppBadgeUpdated
alt text
Records when a taskbar app badge (like notifications) is updated.

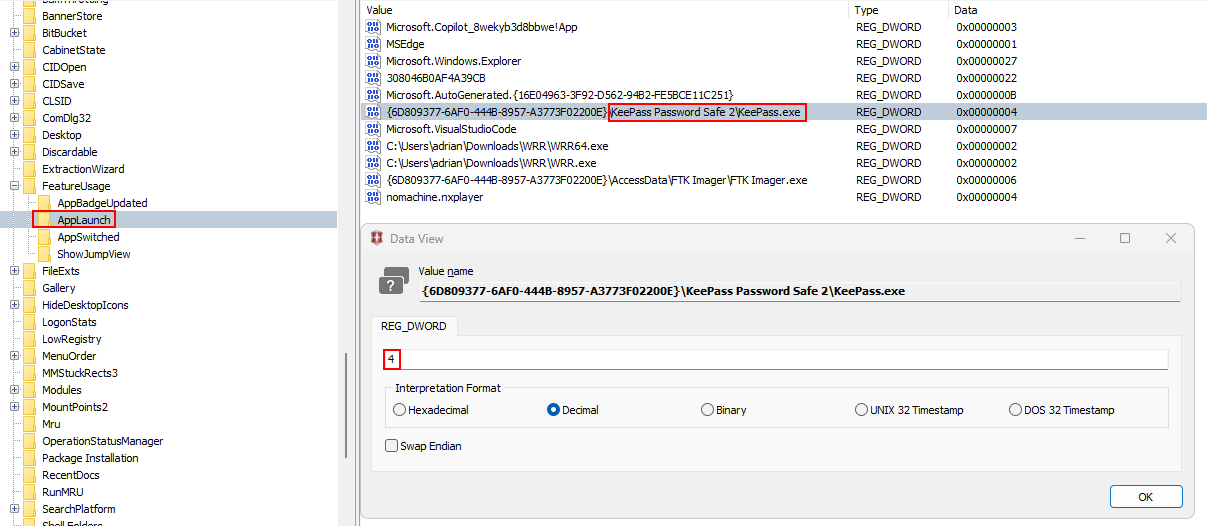

...\AppLaunch
alt text
Logs when a user launches an application from the taskbar.

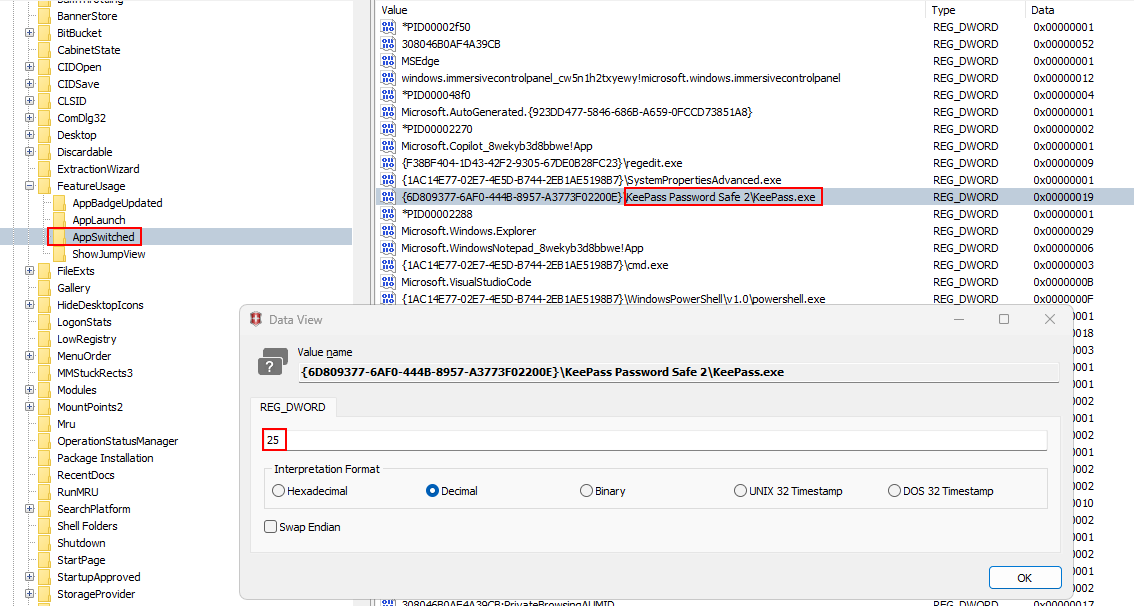

...\AppSwitched
alt text
Tracks when the user switches between apps pinned or open on the taskbar.

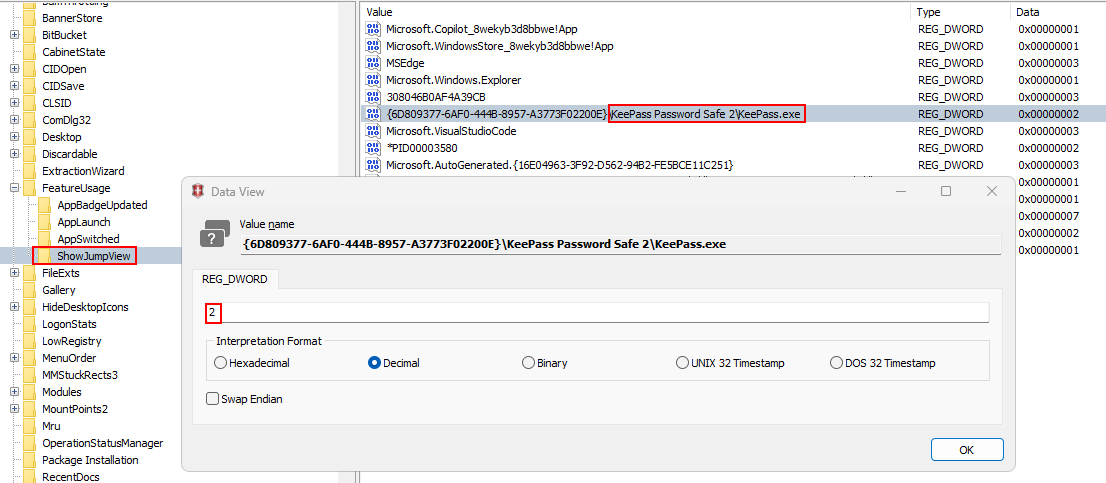

...\ShowJumpView
alt text Logs when the user opens a jump list (right-click menu) on a taskbar app.

  • Recent applications
    Software\Microsoft\Windows\CurrentVersion\Search\RecentApps
    Lists recently used apps.
    (Not present.)

Shortcuts and Jump Lists

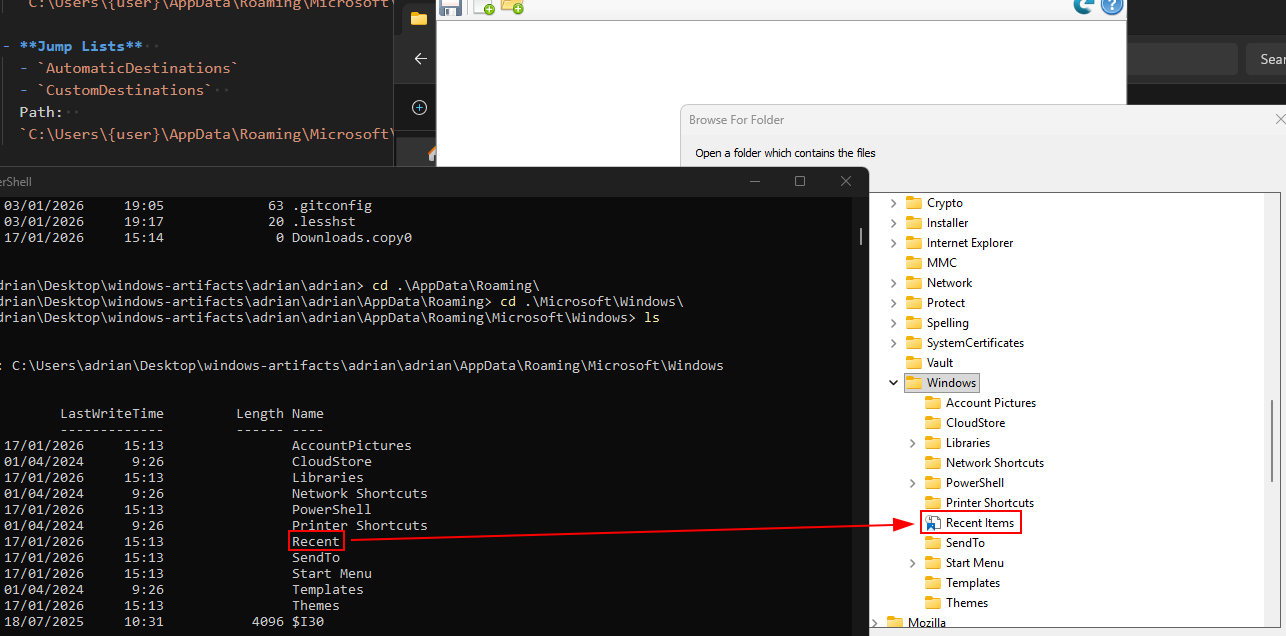

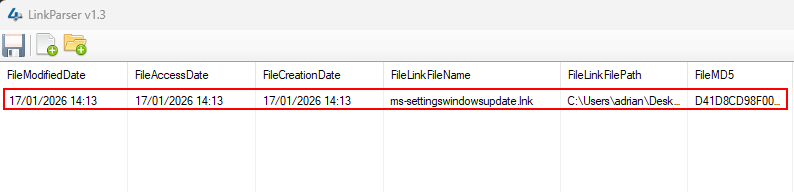

  • Recent documents (LinkParser / LeCMD)
    C:\Users\{user}\AppData\Roaming\Microsoft\Windows\Recent
    Contains shortcut (.lnk) files of recently opened documents.
    alt text
    alt text alt text

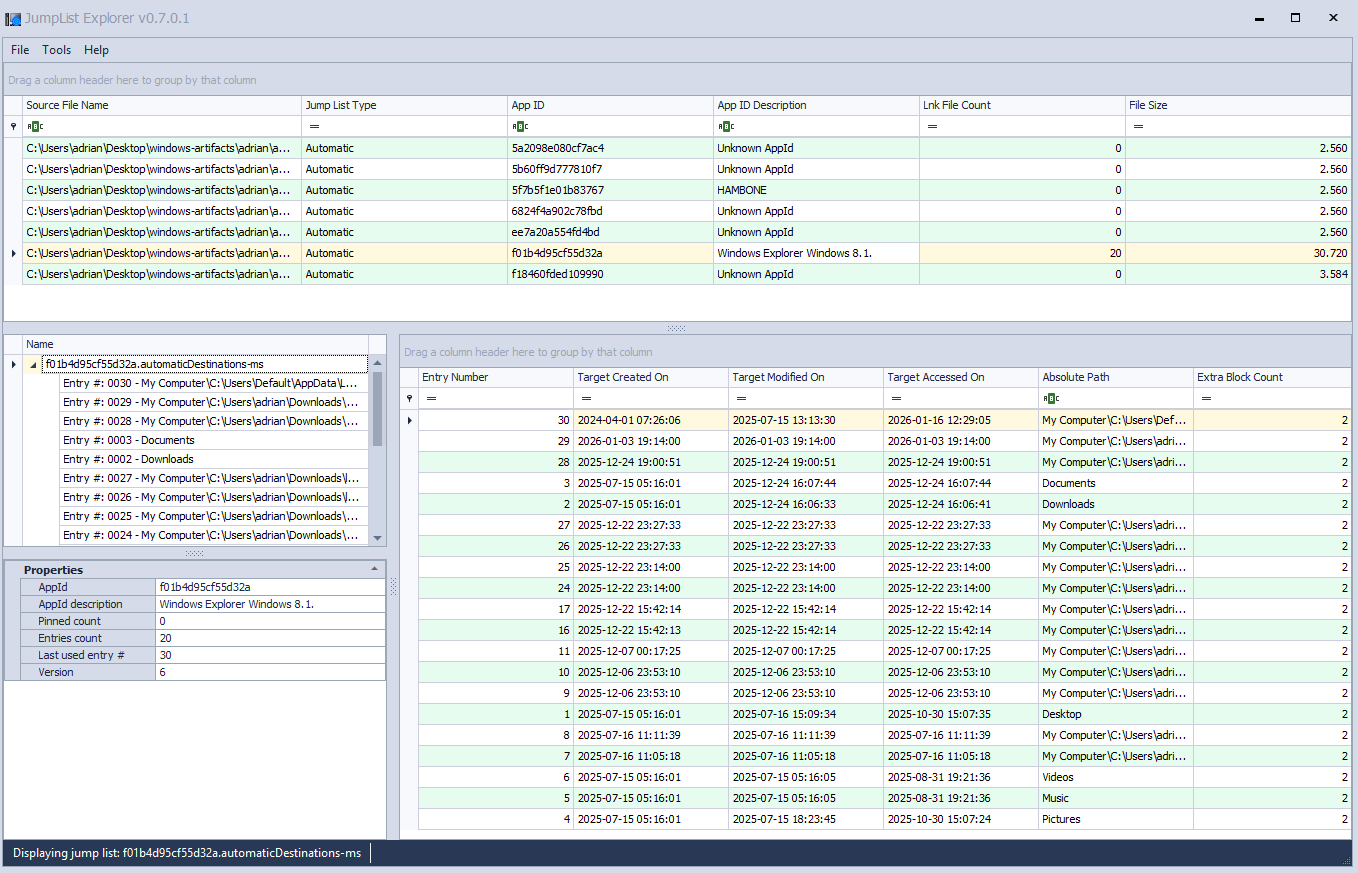

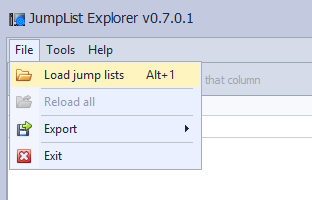

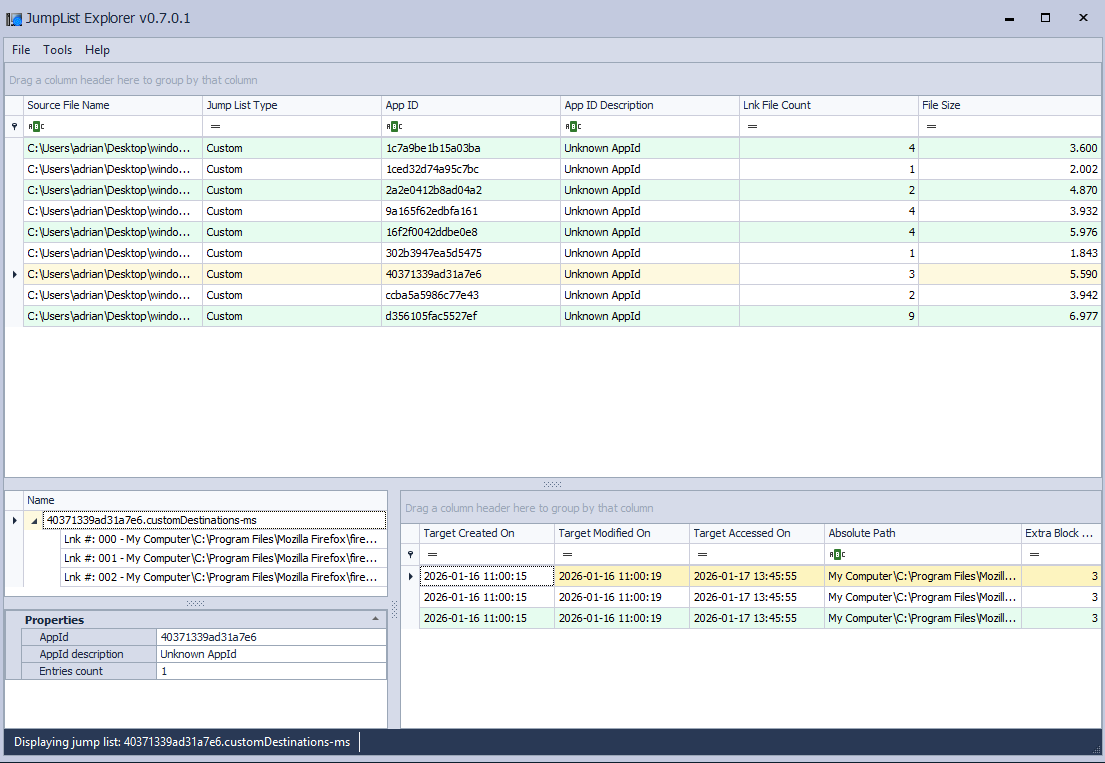

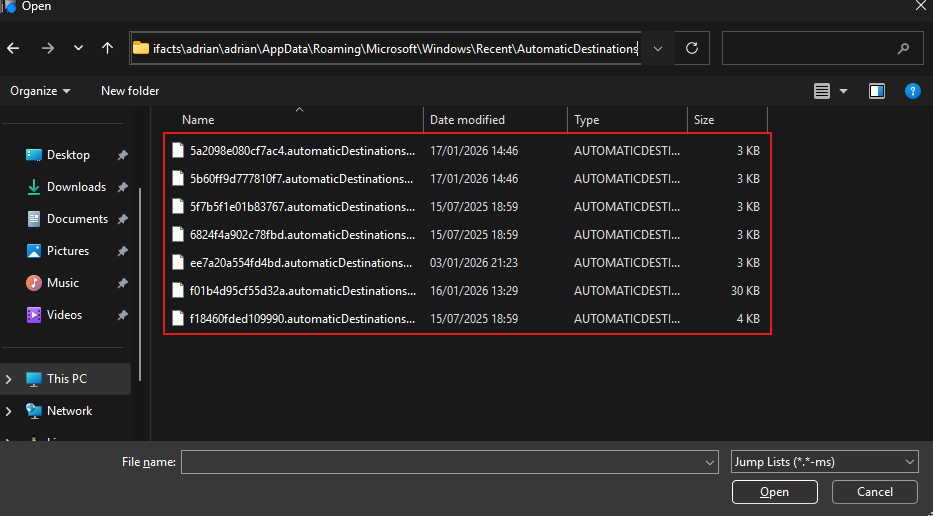

  • Jump Lists
    C:\Users\{user}\AppData\Roaming\Microsoft\Windows\Recent\AutomaticDestinations
    Shows recent and pinned items for applications.
    alt text
    alt text
    alt text

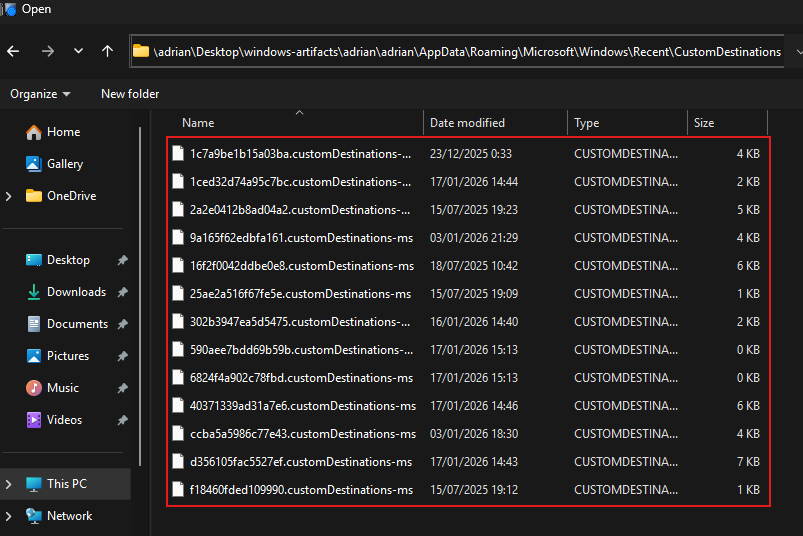

C:\Users\{user}\AppData\Roaming\Microsoft\Windows\Recent\CustomDestinations
alt text
alt text

Shellbags

alt text

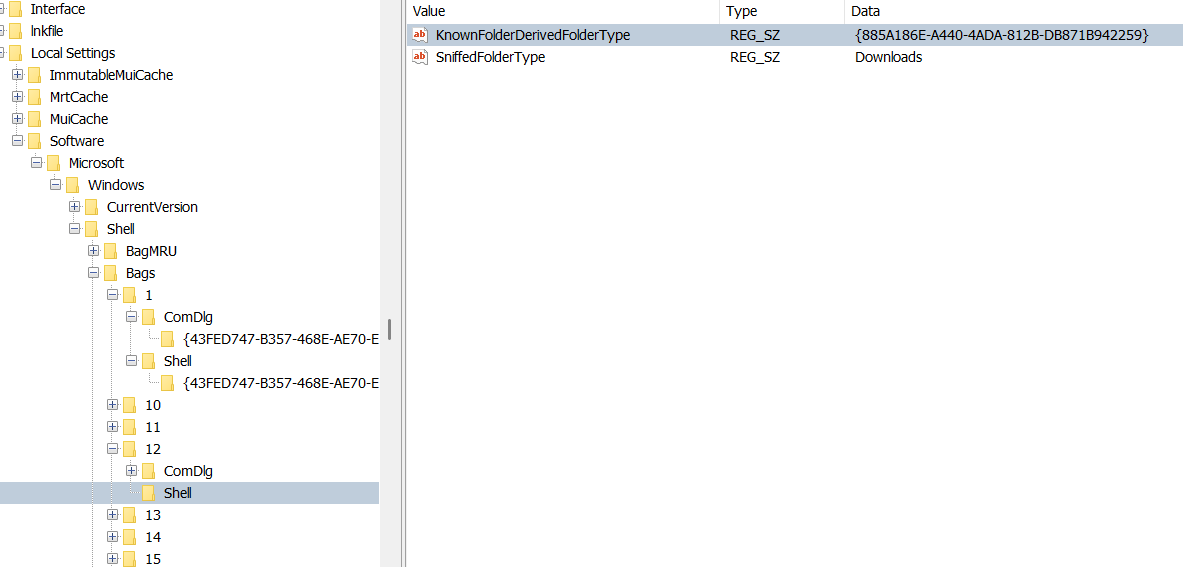

USRCLASS.DAT\Local Settings\Software\Microsoft\Windows\Shell\Bags
Stores the view settings of folders (icon view, details view, window size, etc.) for individual folders.
alt text

USRCLASS.DAT\Local Settings\Software\Microsoft\Windows\Shell\BagMRU
Stores the hierarchy of folders that the user has accessed, linking to the corresponding Bags entries.
alt text

NTUSER.DAT\Software\Microsoft\Windows\Shell\BagMRU
Another location tracking folder access and structure, used by newer versions of Windows for the MRU (Most Recently Used) folder list.
alt text

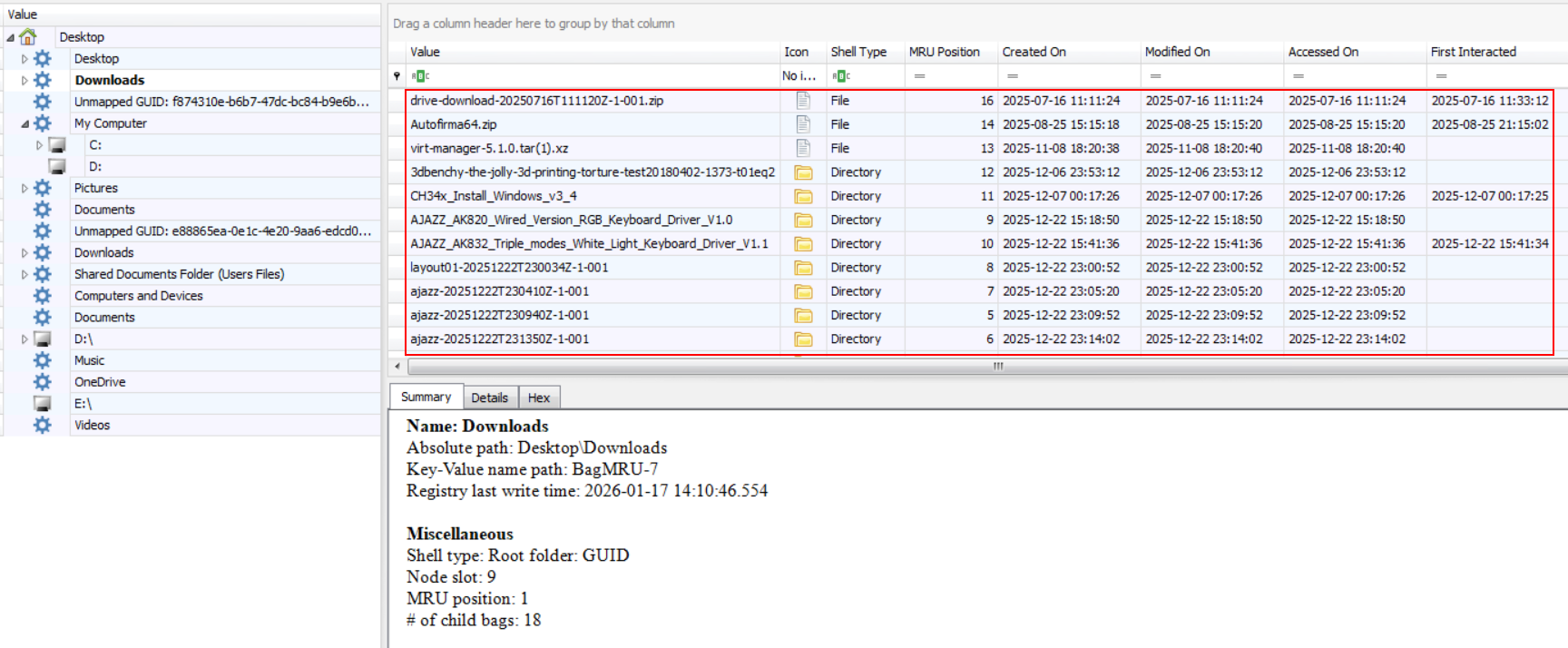

Using a tool like Shellbags Explorer is it possible to visualize Shellbags on a easiest way. alt text

USB and MTP devices

  • MTP devices
    C:\Users\{user}\AppData\Local\Temp\WPDNSE\{GUID}
    (Not present.)

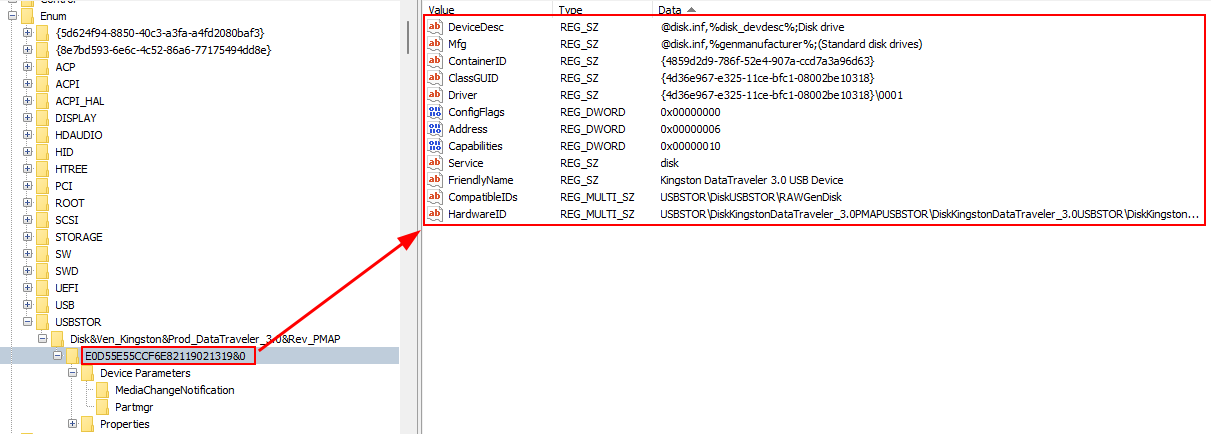

  • USB storage (VID / PID)
    SYSTEM\ControlSet001\Enum\USBSTOR
    Shows vendor/product IDs and device serials.
    alt text

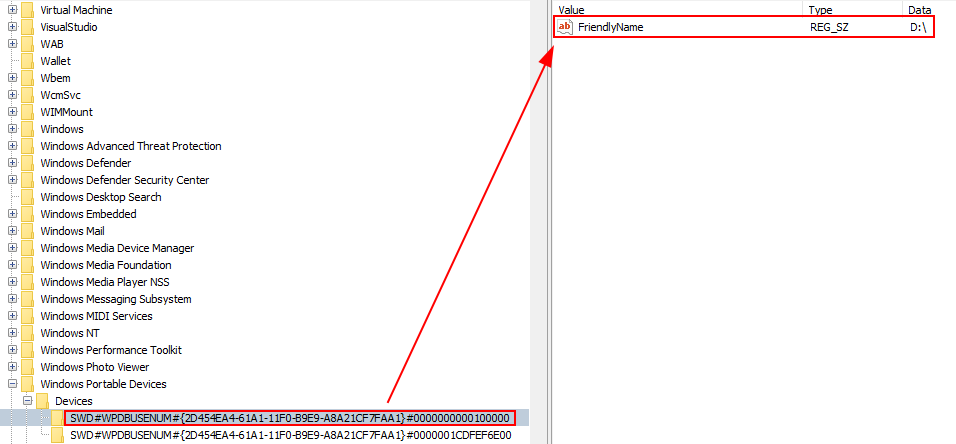

  • USB volume names
    SOFTWARE\Microsoft\Windows Portable Devices\Devices
    Stores friendly device names.
    alt text

  • User who used the USB device

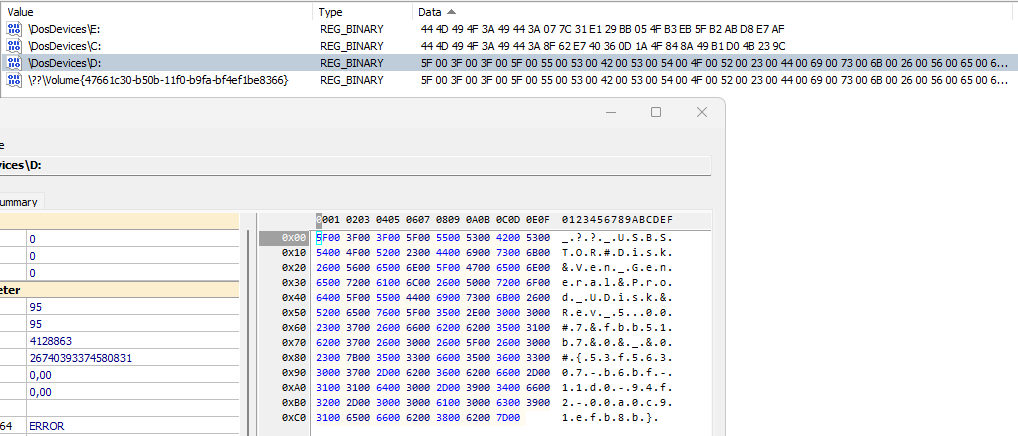

    SYSTEM\MountedDevices

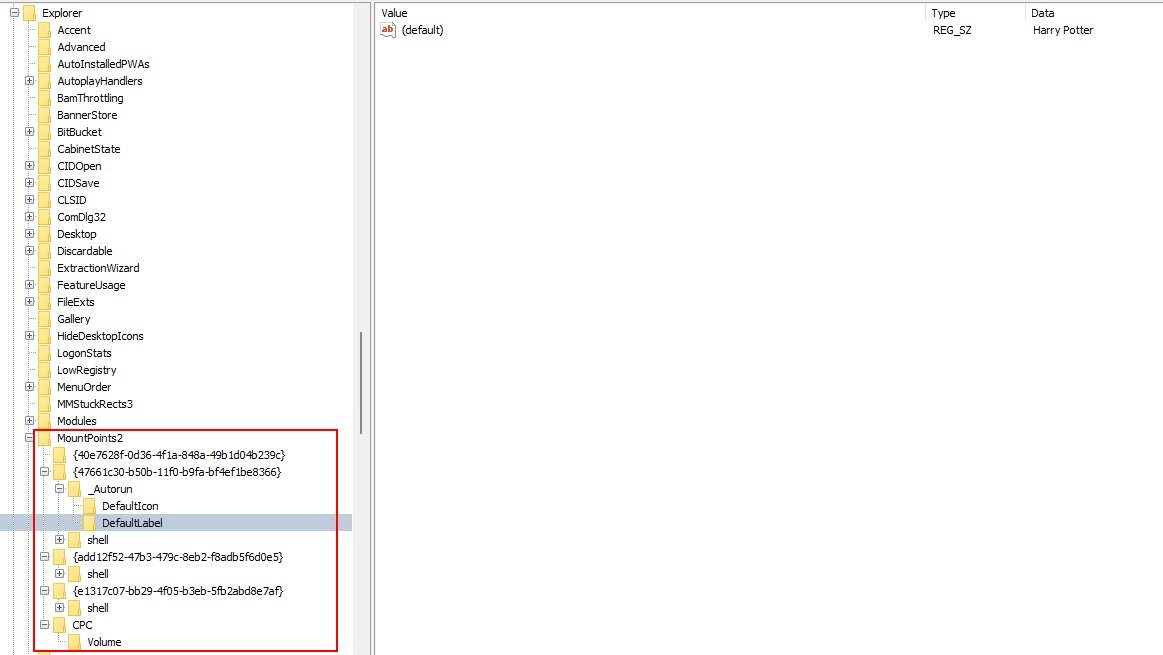

    NTUSER.DAT\Software\Microsoft\Windows\CurrentVersion\Explorer\MountPoints2
    Shows which user mounted the device and assigned drive letters.
    alt text
    alt text

  • Logical volume serial number
    Software\Microsoft\Windows NT\CurrentVersion\EMDMgmt
    Stores volume serials for identification.
    alt text

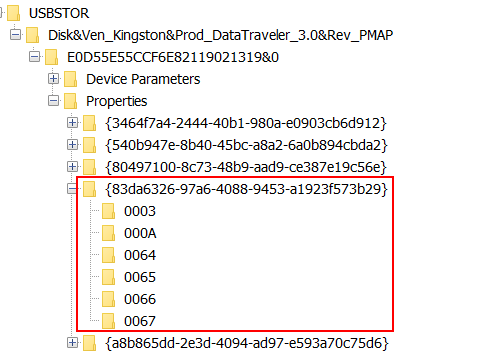

  • First and last connection time
    SYSTEM\ControlSet001\Enum\USBSTOR\{VEN_PROD_VERSION}\{USB_SERIAL}\Properties\{83da6326-97a6-4088-9453-a1923f573b29}
    Tracks timestamps of USB device connections.
    alt text

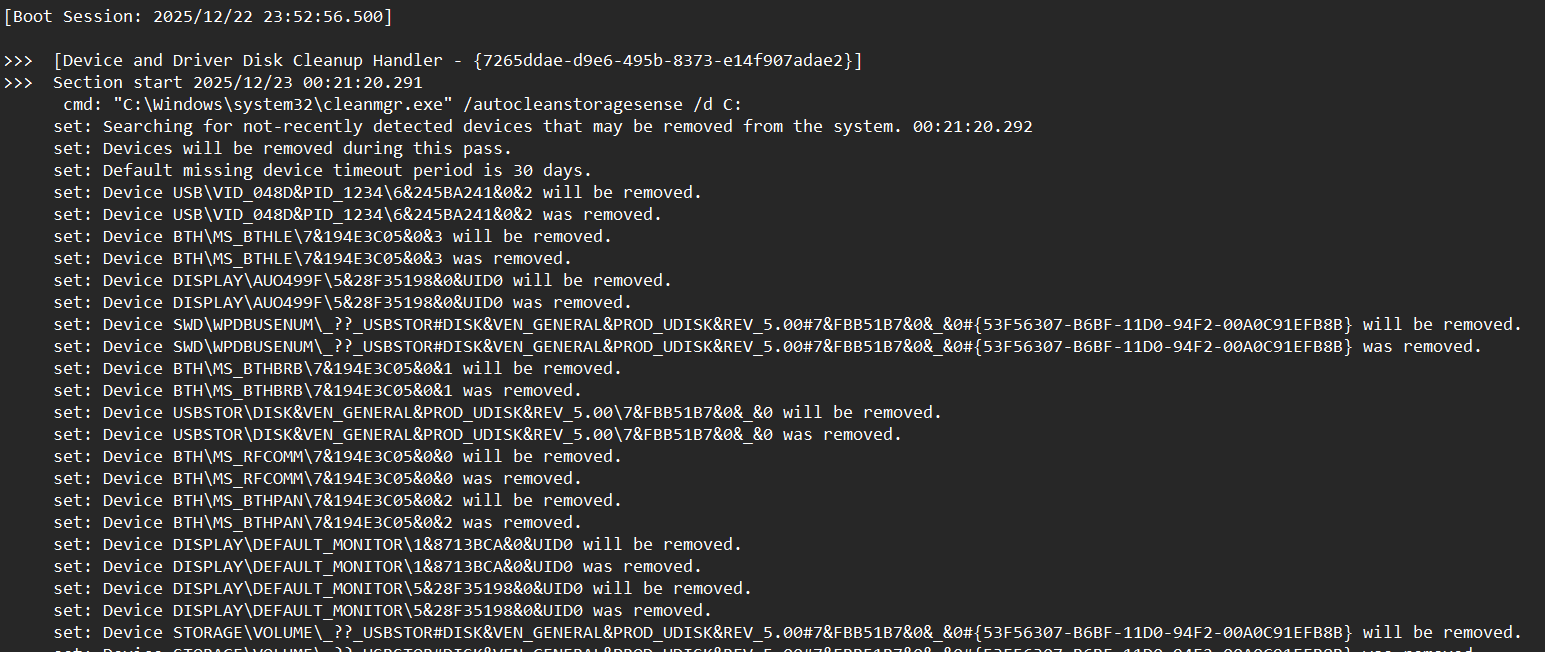

C:\Windows\inf\setupapi.dev.log
Tracks the installation and configuration of device drivers on the system
alt text

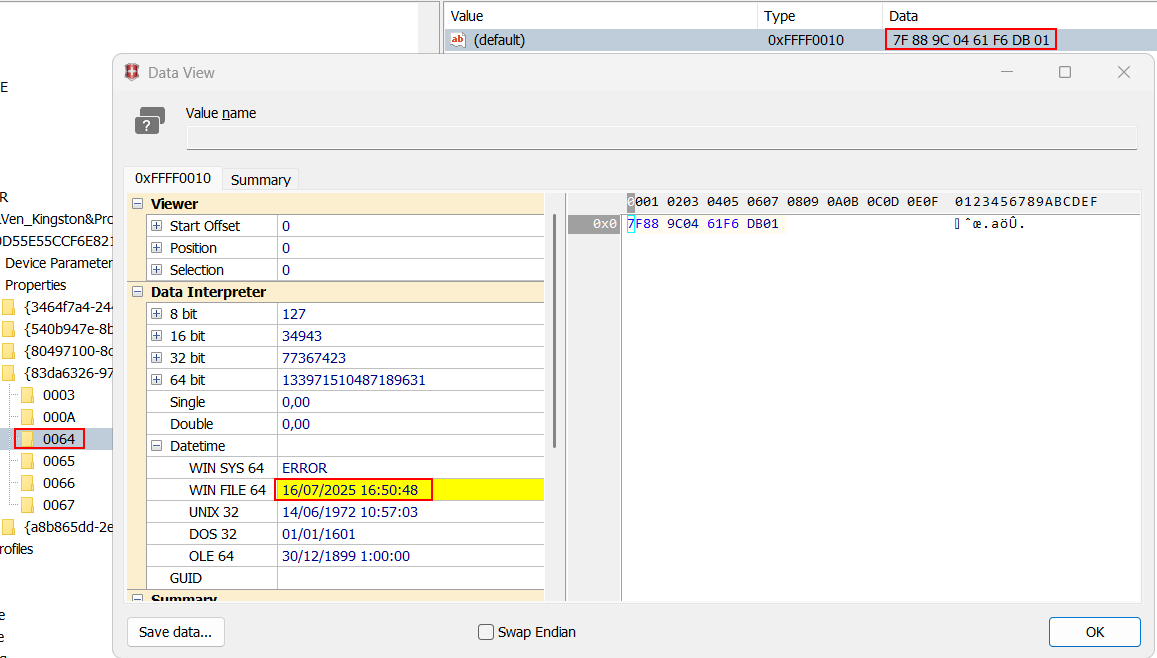

  • 0064 – First connection (InstallDate)
    Indicates the first time the USB device was installed/connected on the system. alt text

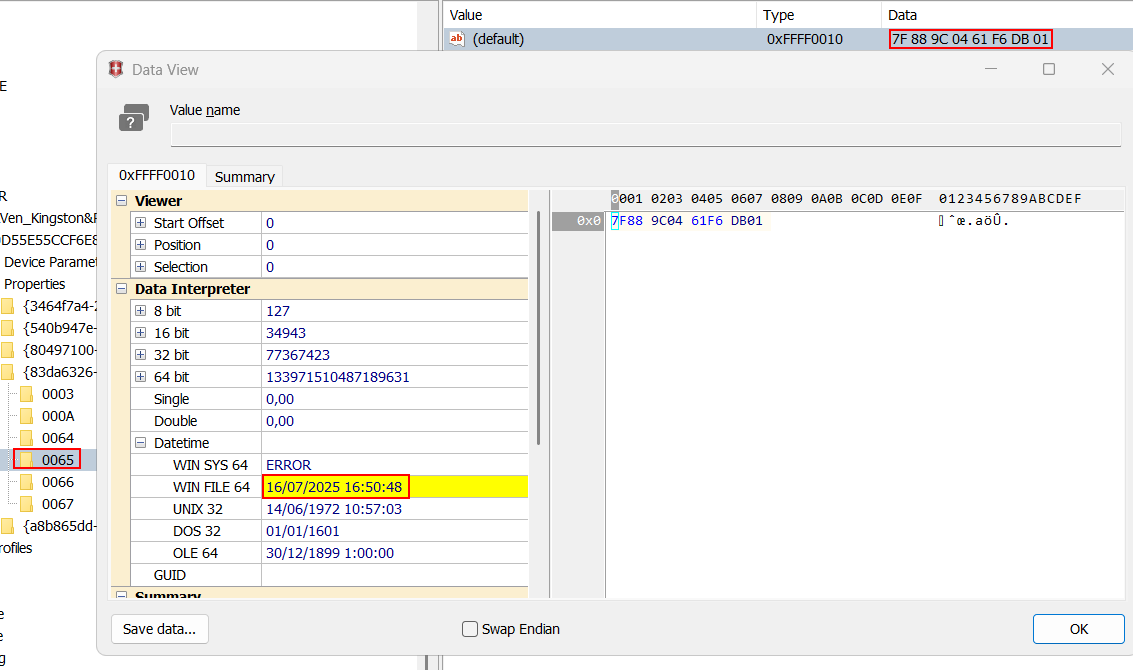

  • 0065 – Last connection (LastArrivalDate)
    Indicates the most recent time the USB device was connected. alt text

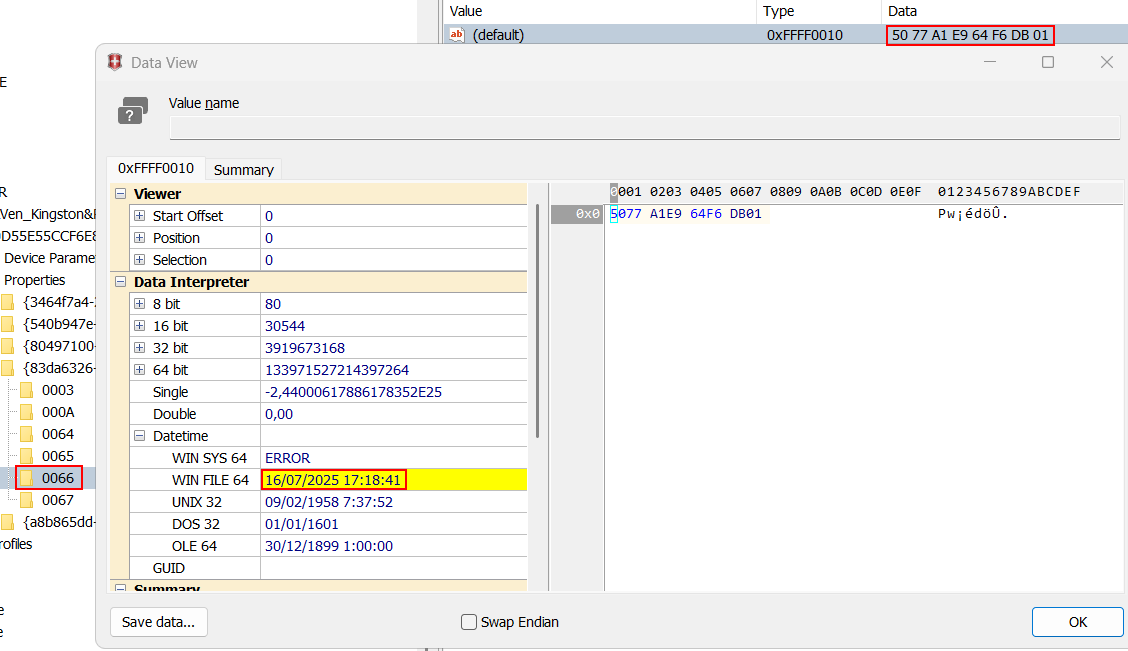

  • 0066 – Last disconnection (LastRemovalDate)
    Indicates the most recent time the USB device was safely removed. alt text

Databases and system artifacts

  • Cortana database
    C:\Users\{user}\AppData\Local\Packages\Microsoft.Windows.Cortana_xxxx\LocalState\ESEDatabase_CortanaCoreInstance\CortanaCoreDb.dat
    (Not present.)

  • Windows notifications

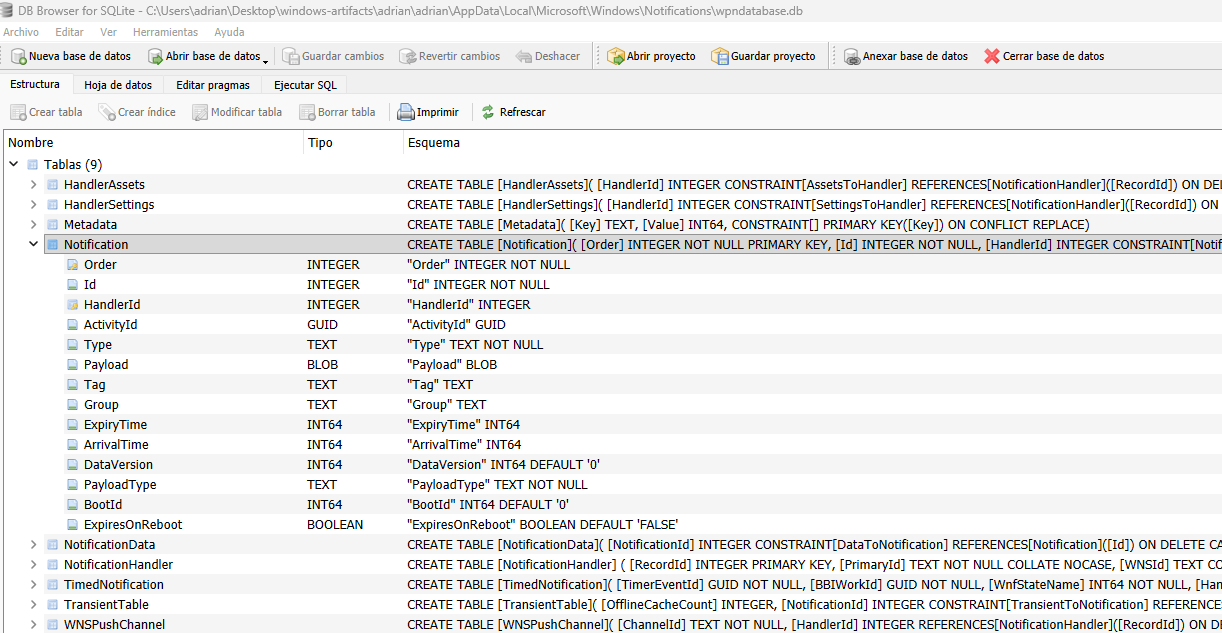

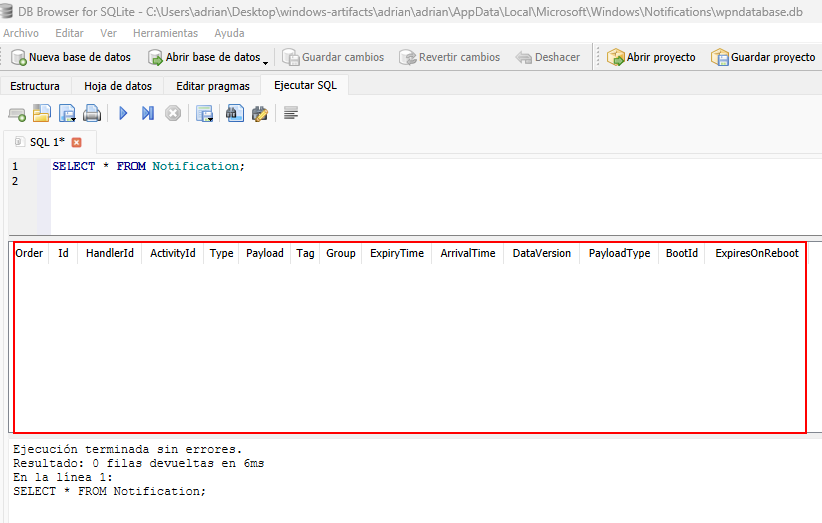

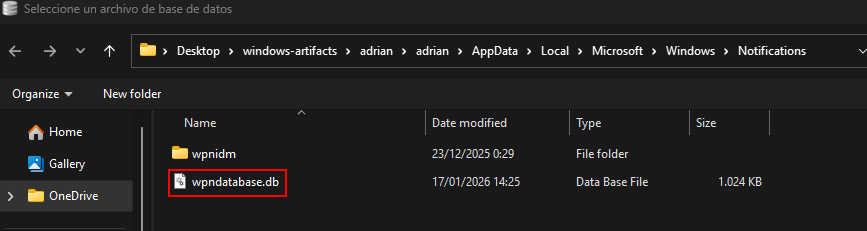

    C:\Users\{user}\AppData\Local\Microsoft\Windows\Notifications\wpndatabase.db
    Tracks notifications shown to the user.
    alt text
    alt text
    alt text
    alt text

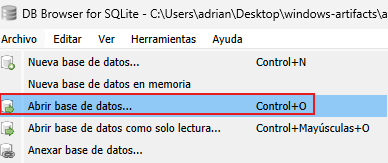

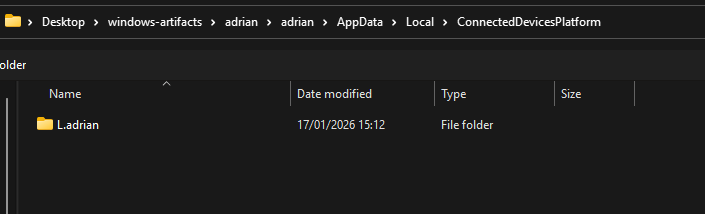

  • Timeline
    C:\Users\{user}\AppData\Local\ConnectedDevicesPlatform\ActivitiesCache.db
    Tracks app and file activity over time.
    alt text

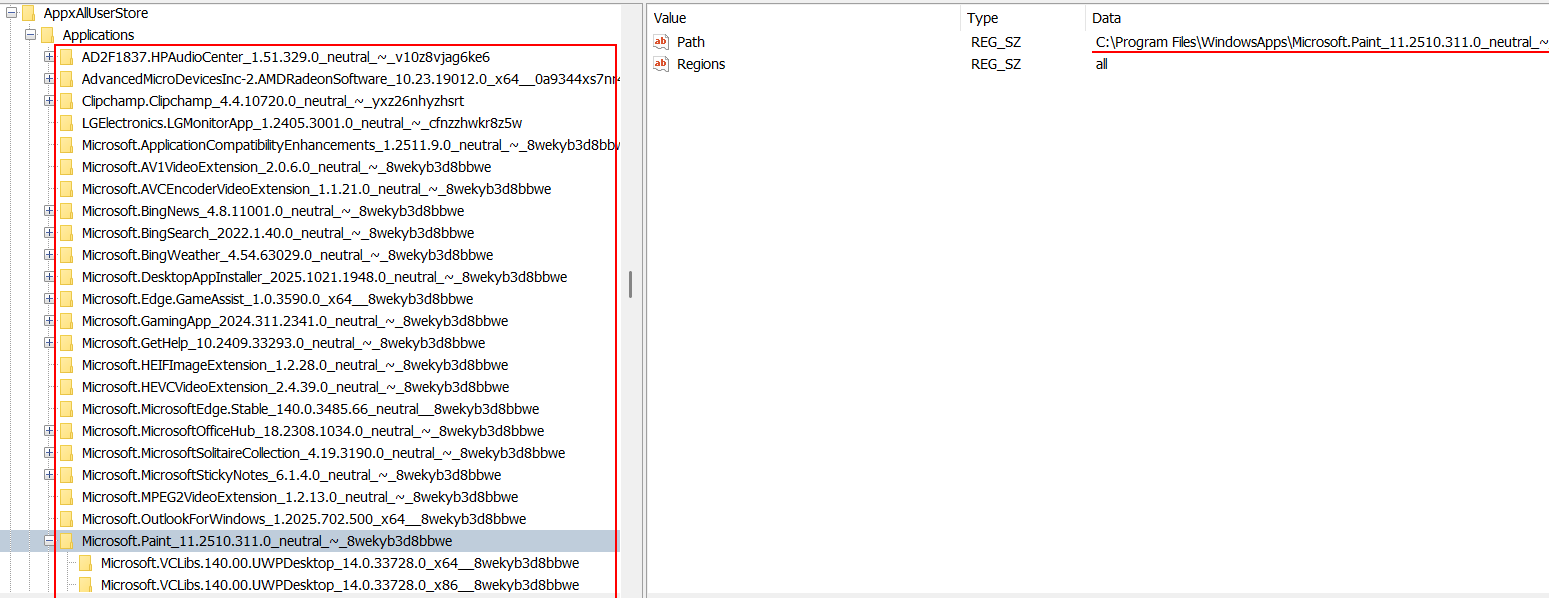

  • Windows Store
    Software\Microsoft\Windows\CurrentVersion\Appx\AppxAllUserStore\Applications\
    Contains Windows Store app installation state.
    alt text

Other artifacts

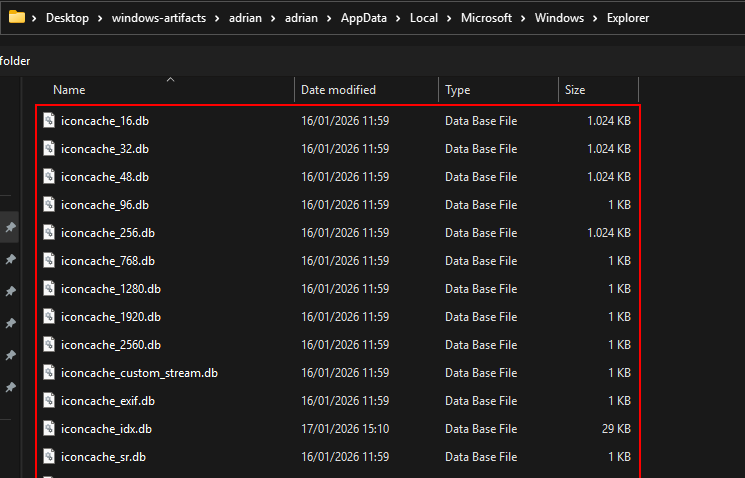

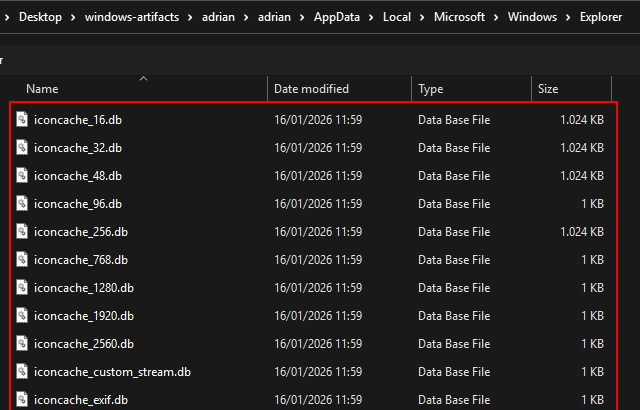

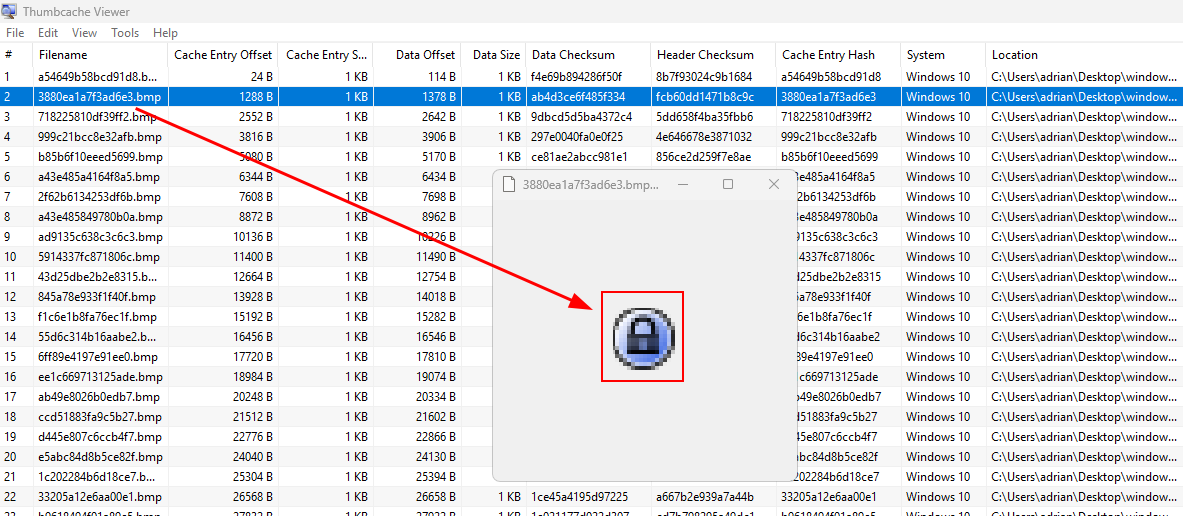

  • Thumbnails and Thumbcache
    thumbs.db
    C:\Users\{user}\AppData\Local\Microsoft\Windows\Explorer
    Stores thumbnail images of files for faster previews.
    alt text
    alt text
    alt text
    alt text
    alt text

  • Recycle Bin
    C:\$Recycle.Bin
    Stores deleted files.
    alt text

Copy for analysis:

Copy-Item -Recurse -Force 'C:\$Recycle.Bin\S-1-5-21-4071608857-1089510339-248207473-1000' 'C:\RecycleBackup'

alt text

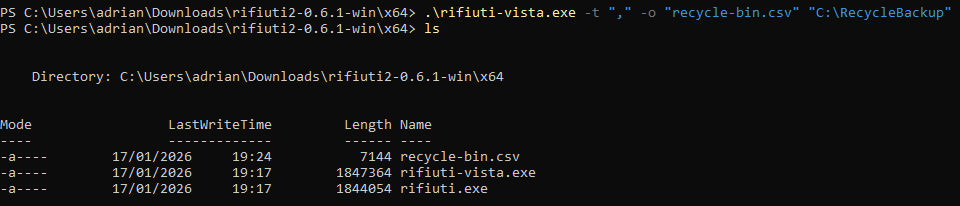

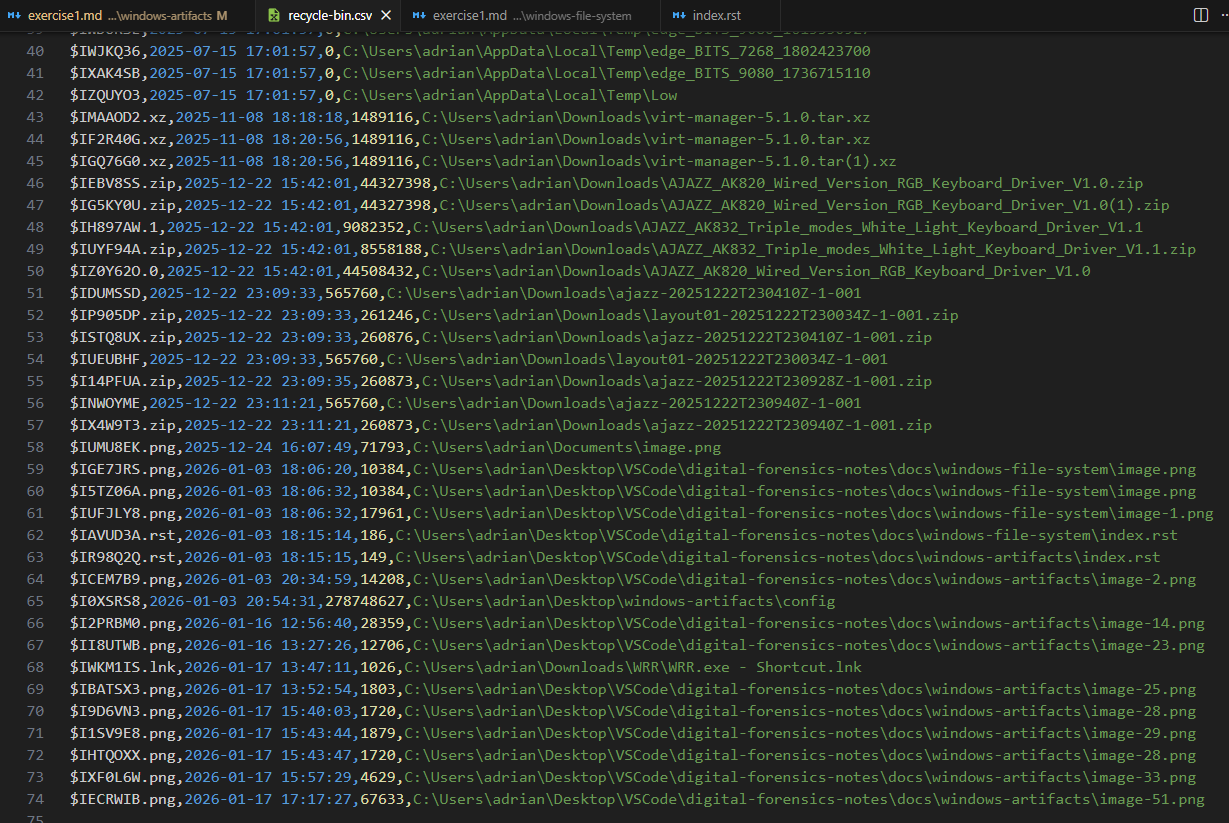

Export to CSV:

.\rifiuti-vista.exe -t "," -o "recycle-bin.csv" "C:\RecycleBackup"

alt text

  • OfficeFileCache
    C:\Users\{user}\AppData\Local\Microsoft\Office\{Version}\OfficeFileCache
    (Not present.)

  • OfficeBackstage
    C:\Users\{user}\AppData\Local\Microsoft\Office\16.0\BackstageInAppNavCache
    (Not present.)

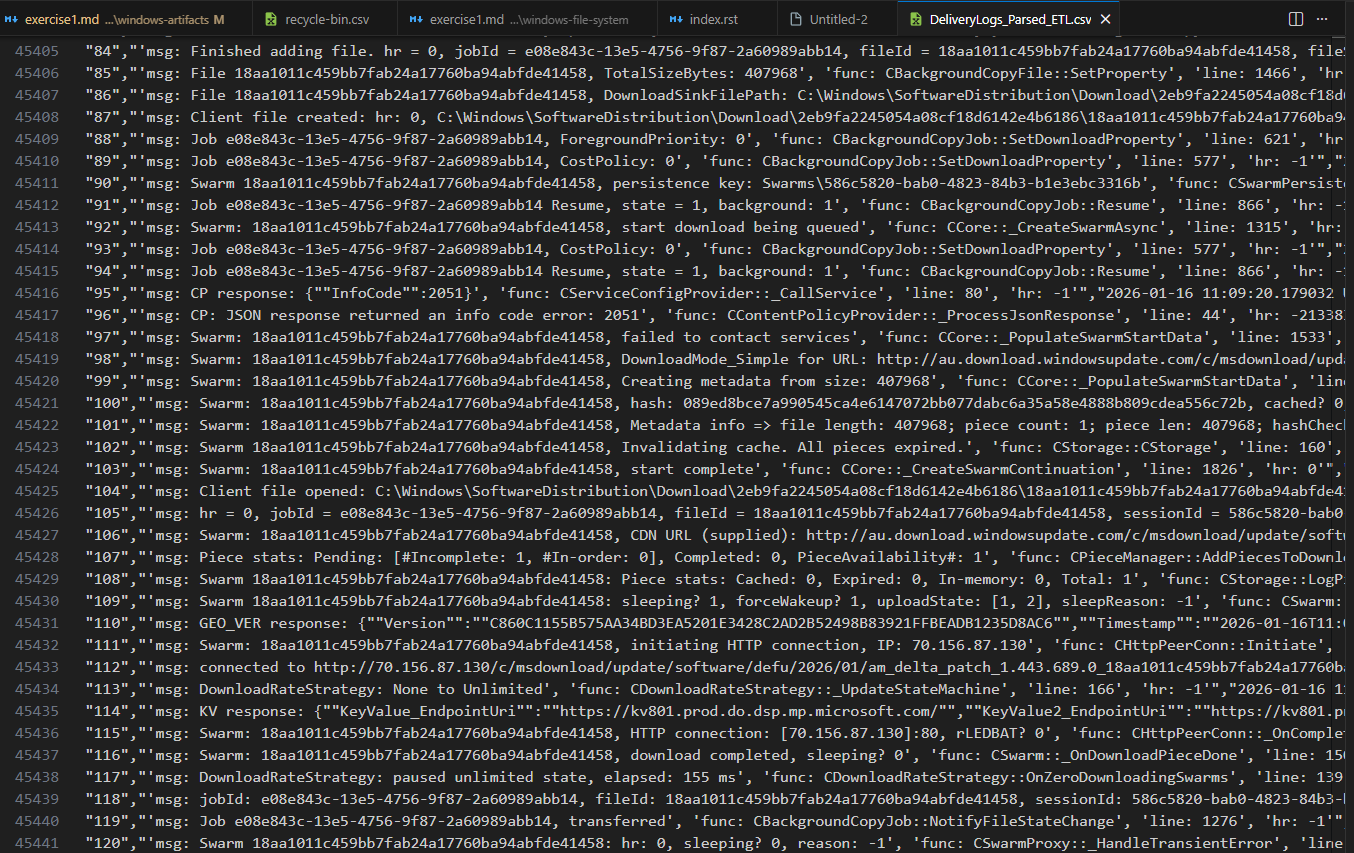

  • Public IP (ETLParser)
    C:\Windows\ServiceProfiles\NetworkService\AppData\Local\Microsoft\Windows\DeliveryOptimization\Logs

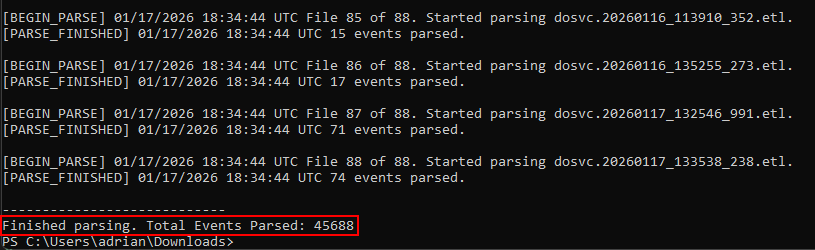

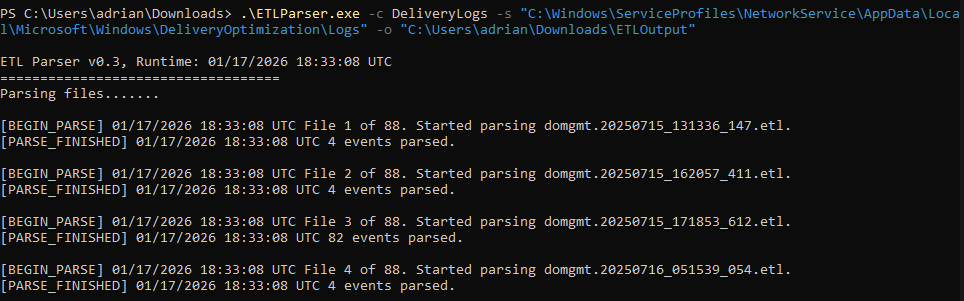

.\ETLParser.exe -c DeliveryLogs -s "C:\Windows\ServiceProfiles\NetworkService\AppData\Local\Microsoft\Windows\DeliveryOptimization\Logs" -o "C:\Users\adrian\Downloads\ETLOutput"

alt text
alt text
alt text

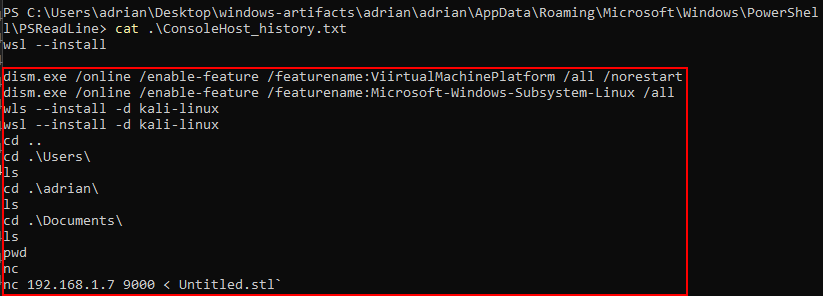

  • PowerShell command history
    C:\Users\{user}\AppData\Roaming\Microsoft\Windows\PowerShell\PSReadLine\ConsoleHost_history.txt
    Stores previously executed PowerShell commands.
    alt text

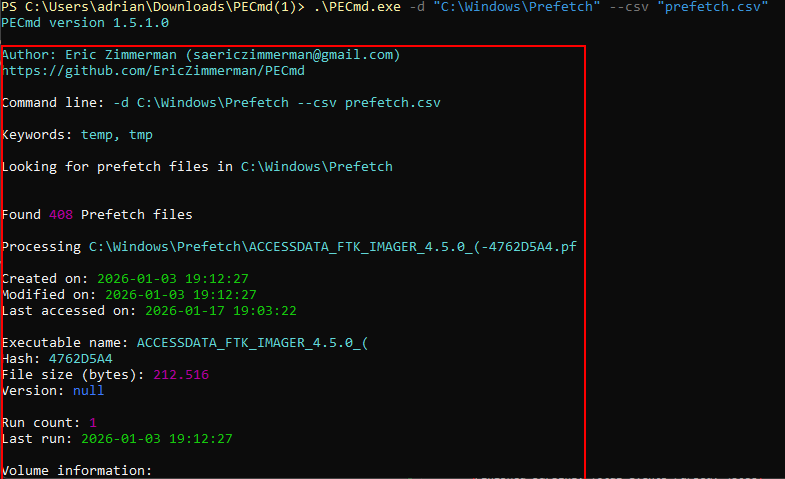

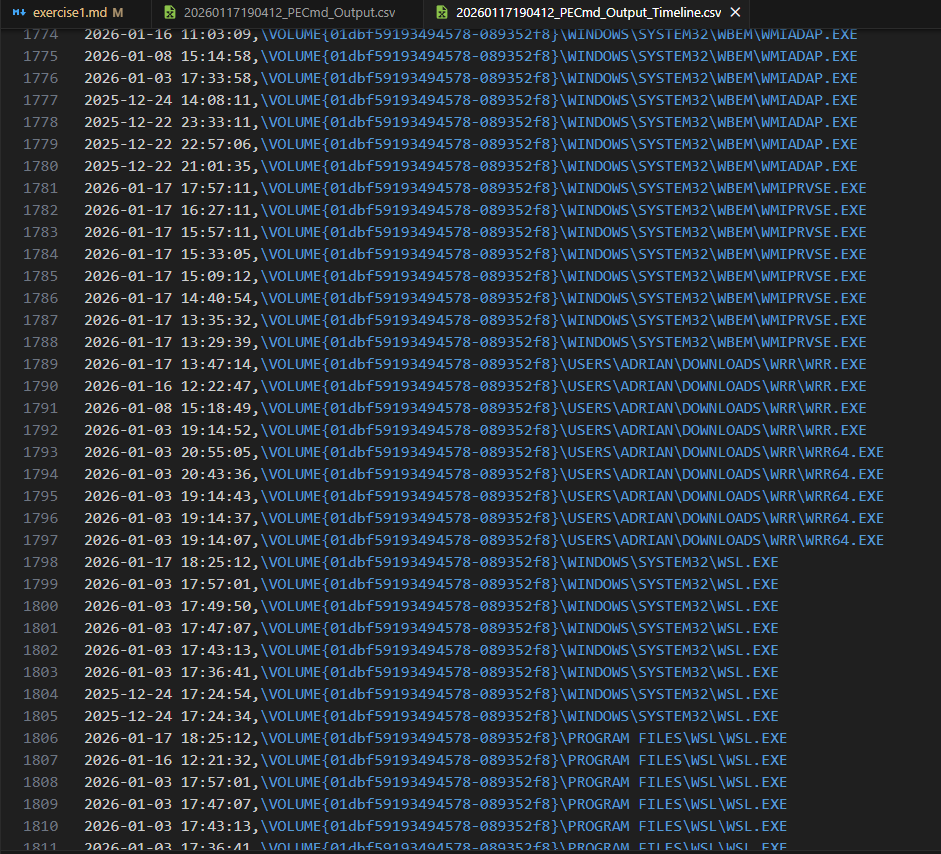

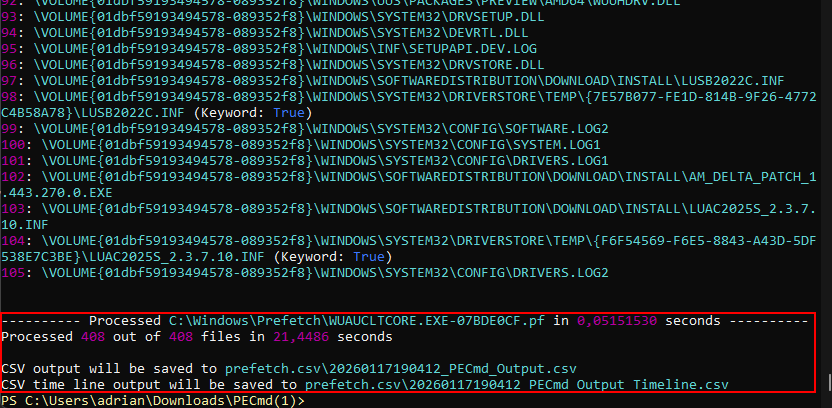

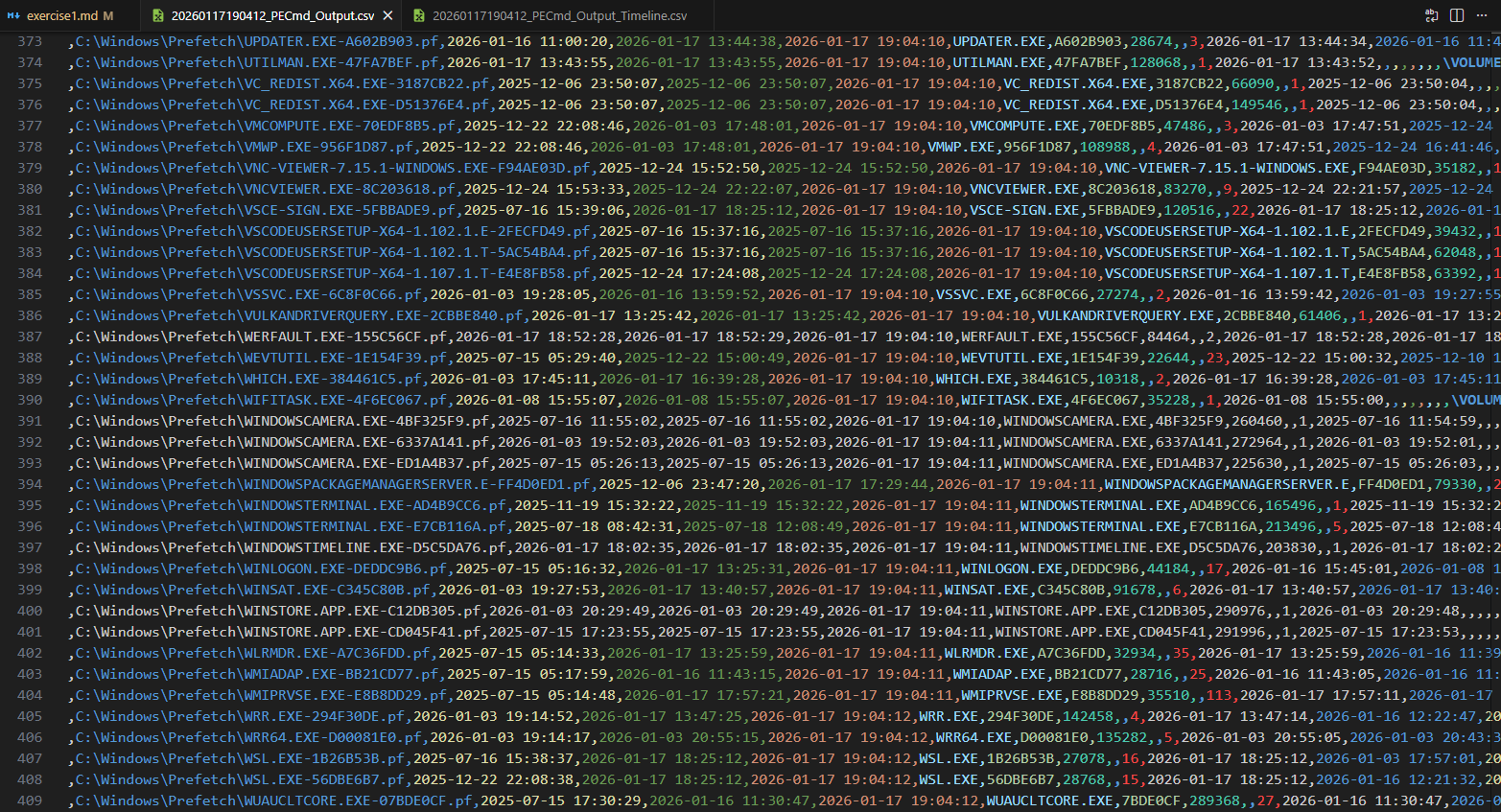

  • Prefetch
    C:\Windows\Prefetch
    Stores data about program execution.
    alt text
    alt text
    alt text
    alt text

  • SuperFetch
    C:\Windows\Prefetch\Ag*.db
    Caches frequently used applications to speed up loading.
    As I’m using a ssd superfetch files are not generated

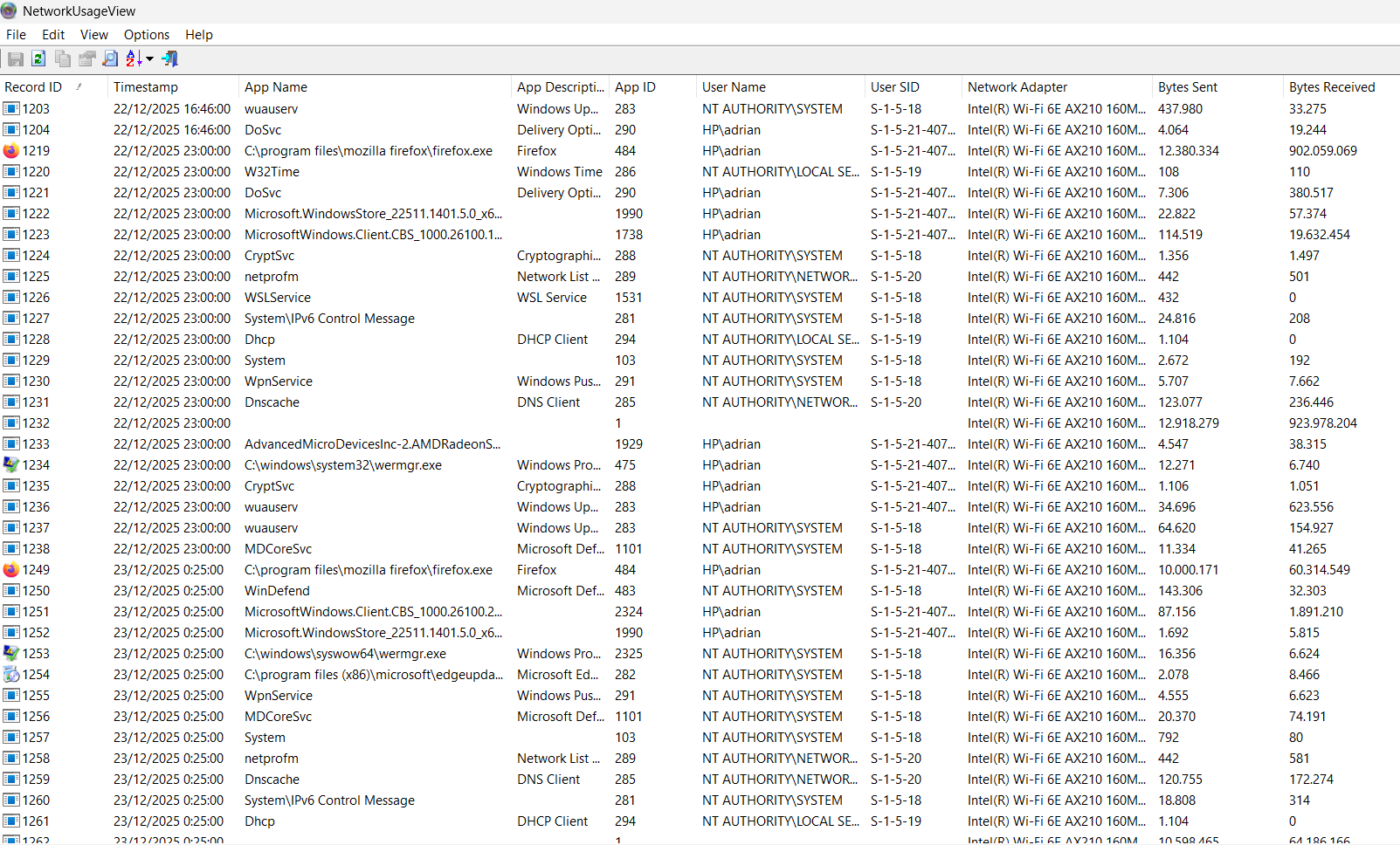

  • SRUM
    C:\Windows\System32\sru\SRUDB.dat
    Tracks network, CPU, and power usage. alt text

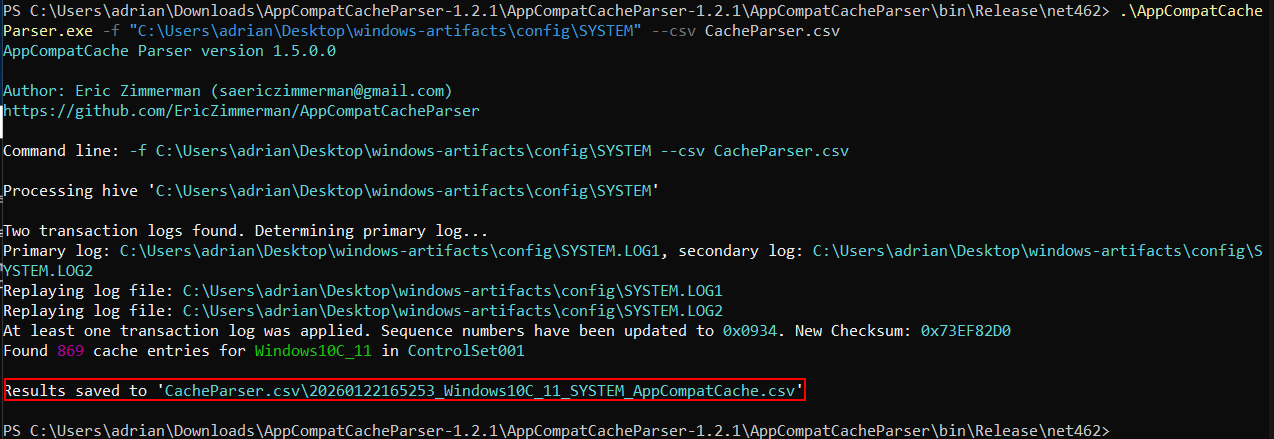

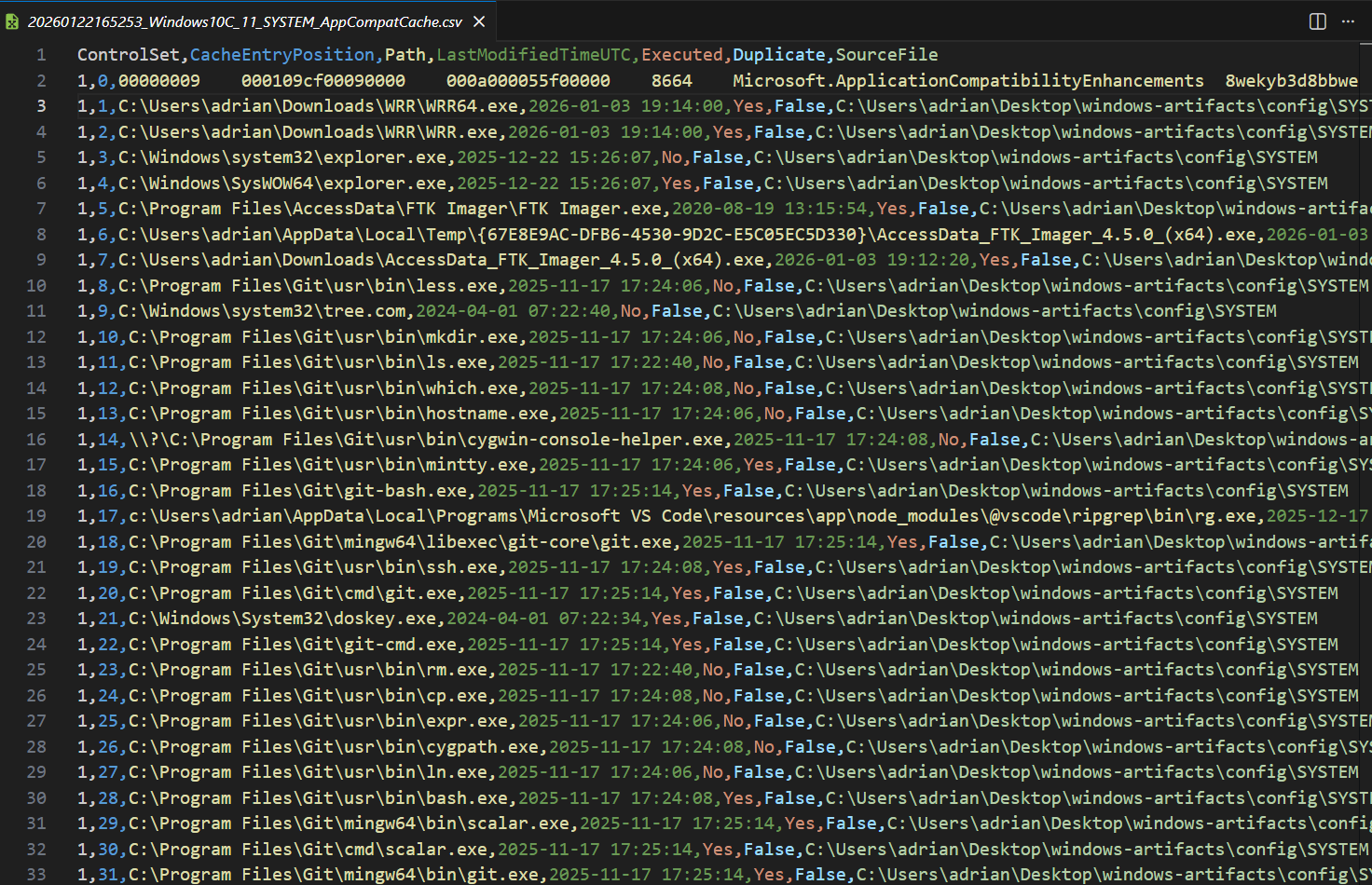

  • ShimCache
    SYSTEM\ControlSet001\Control\SessionManager\AppCompatCache\AppCompatCache
    Registry-based cache listing previously executed programs, even if deleted.

  • AmCache (AppCompatCacheParser)
    C:\Windows\AppCompat\Programs\Amcache.hve
    Stores metadata about executed programs, installation times, and file paths. alt text alt text

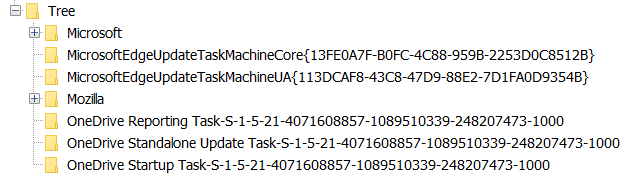

  • Scheduled Tasks
    SOFTWARE\Microsoft\Windows NT\Current Version\TaskCache\Tree
    Lists tasks scheduled by the system or users. alt text

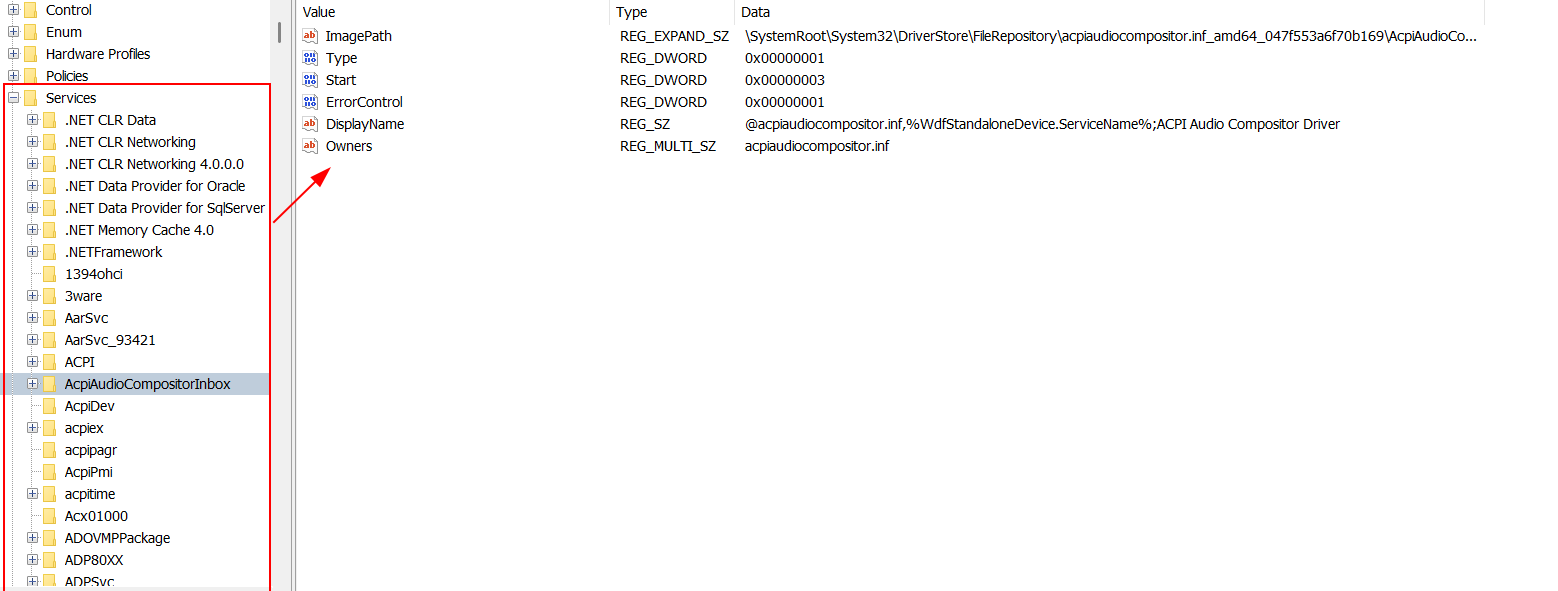

  • Services
    SYSTEM\ControlSet001\Services
    Registry keys storing installed services and their configuration. alt text

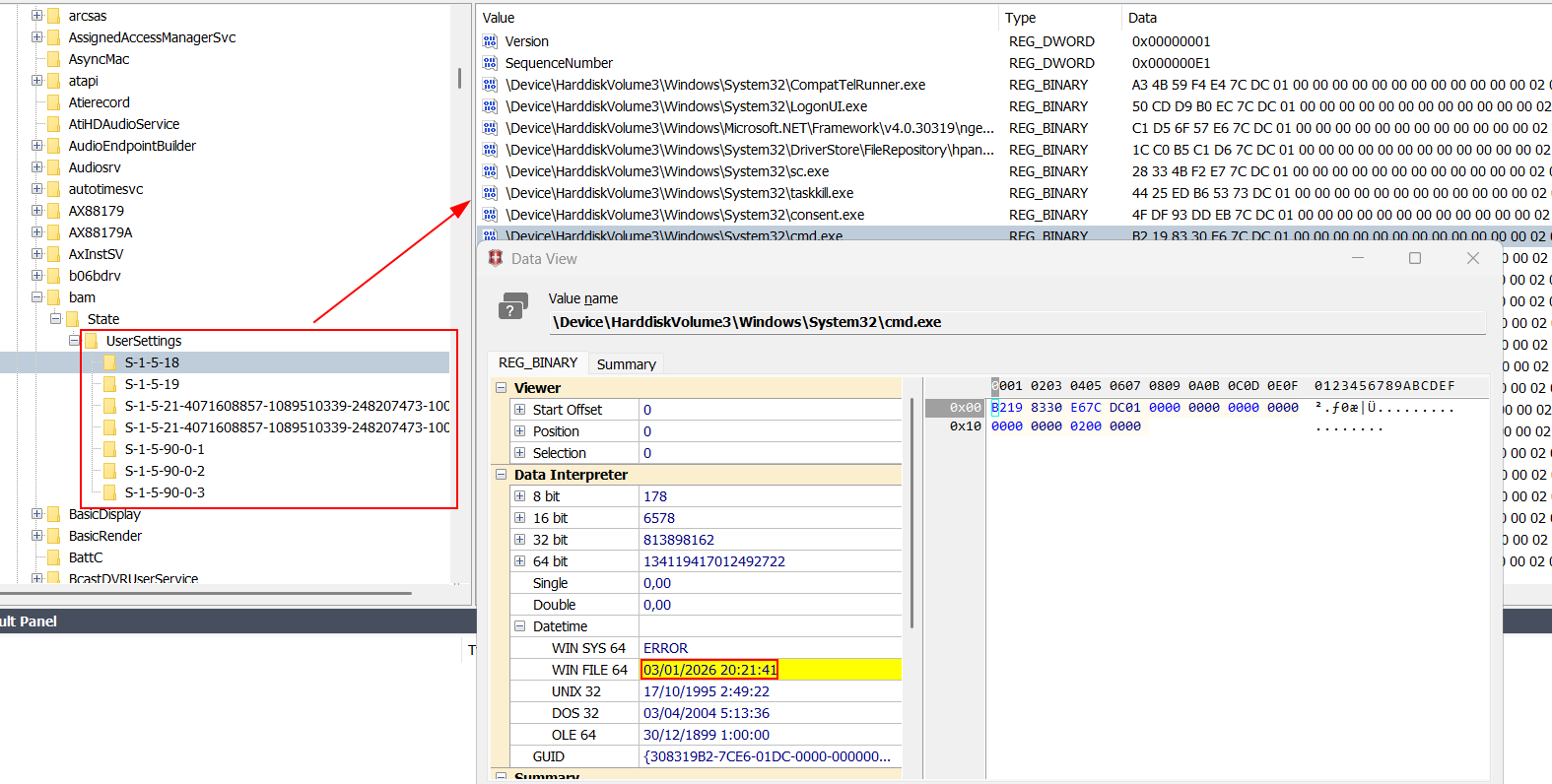

  • BAM (DCode)
    Tracks per-user application activity and resource usage. SYSTEM\ControlSet001\Services\bam\UserSettings{SID}
    Not present

SYSTEM\ControlSet001\Services\bam\state\UserSettings{SID}
alt text

  • Windows Event Logs
    C:\Windows\System32\winevt\Logs
    Stores system, security, and application events for auditing and forensic analysis. alt text alt text
