Android UnCrackable Level 1

The crack will be performed on a Kali Linux machine.

The installation process for each tool will not be shown, but every step to create the environment will be documented.

To install the .apk, an emulator is required. Create an emulator using the following command:

avdmanager create avd -n Android26 -k "system-images;android-26;default;x86_64" -c 10M

Verify that the device has been installed correctly:

avdmanager list avd

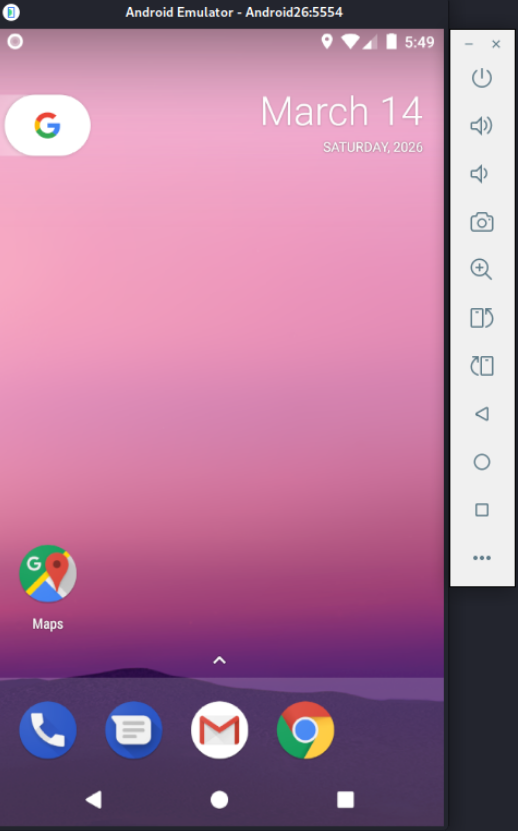

Start the emulator as follows:

emulator -avd Android26

Use the following command to list connected devices. Note the device name.

adb devices

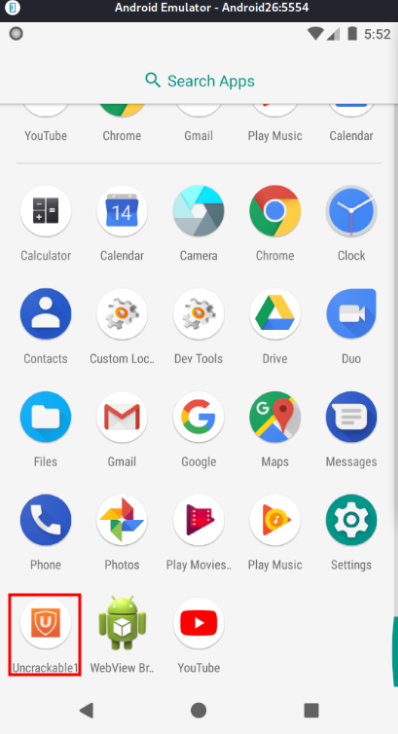

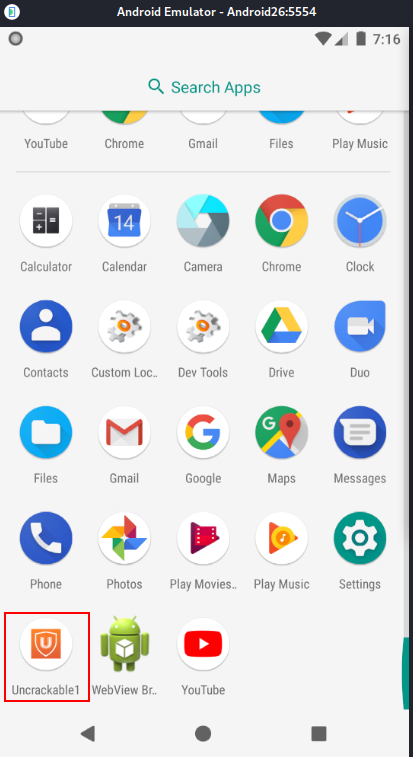

Download UnCrackable-Level1.apk and install it on the emulator. Then open the app.

adb -s emulator-5554 install UnCrackable-Level1.apk

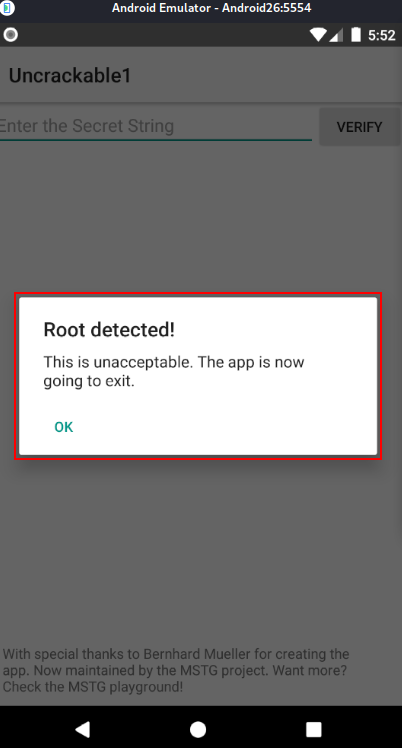

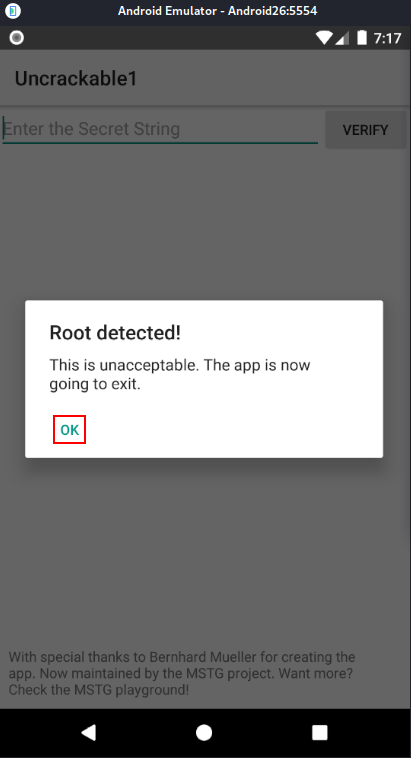

The application detects that the device is rooted and immediately closes.

To bypass this, we need to investigate the app to find the anti-root check.

Android APK Studio will be used for static analysis, although other tools like jadx or apktool can do the same job.

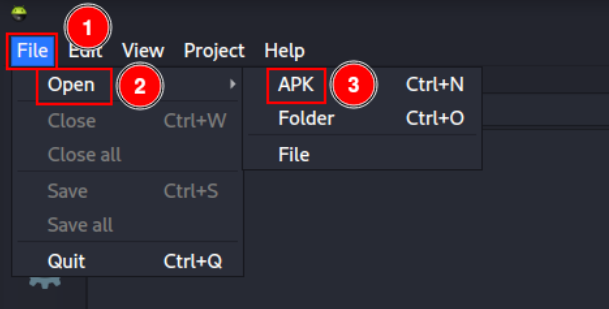

Open Android APK Studio and click “File” -> “Open” -> “APK”, then select UnCrackable-Level1.apk.

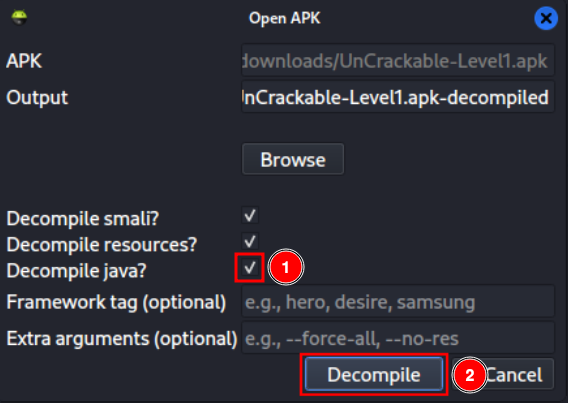

Select the “Decompile java?” checkbox and click “Decompile”.

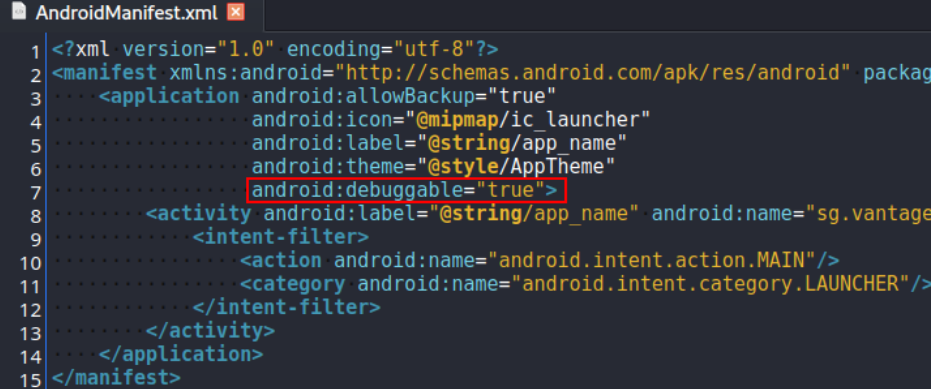

I will modify the app to bypass the root detection. Add the attribute android:debuggable="true" in AndroidManifest.xml to allow debugging.

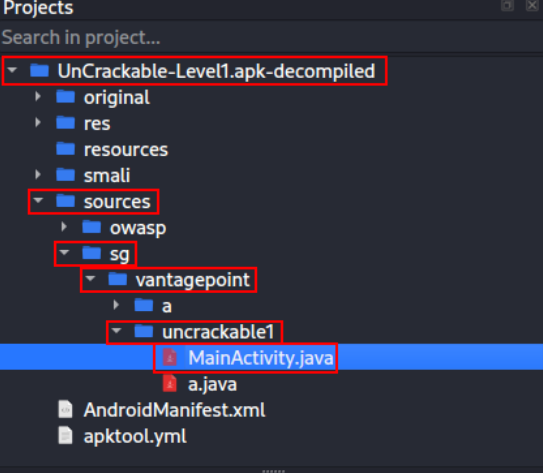

Navigate to the MainActivity.java file, which is the app’s entry point, and analyze it.

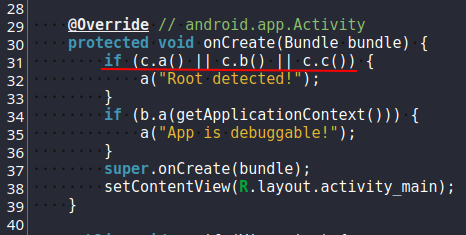

As shown, a function is triggered when c.a(), c.b(), or c.c() return true. In that case, the app detects root.

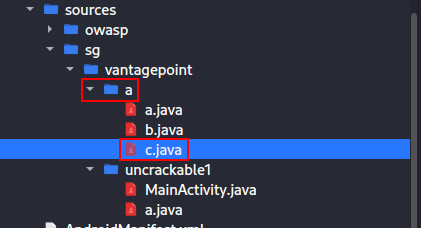

Open class c to study the anti-root protection.

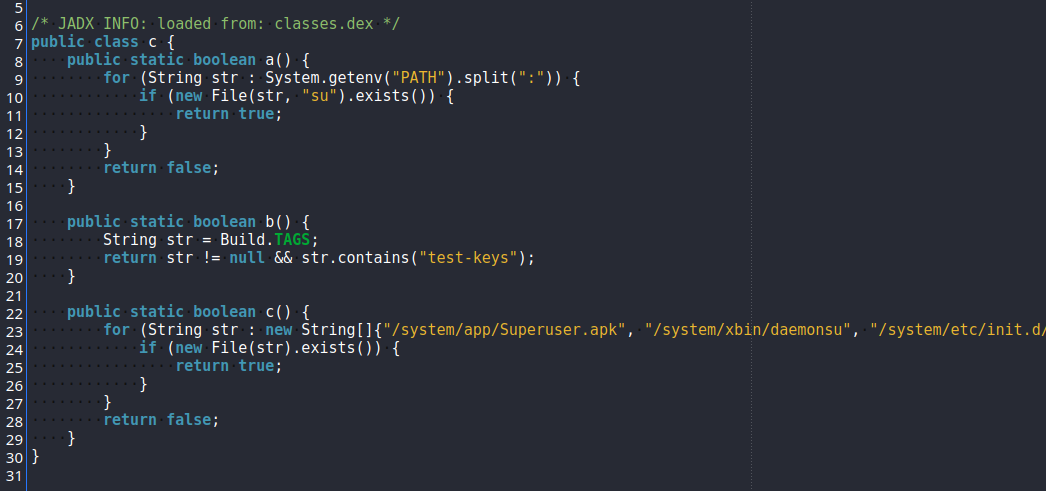

There we can see:

• a: detects su in the system path.

• b: searches for keys containing test-keys.

• c: searches for programs typically found in emulator environments.

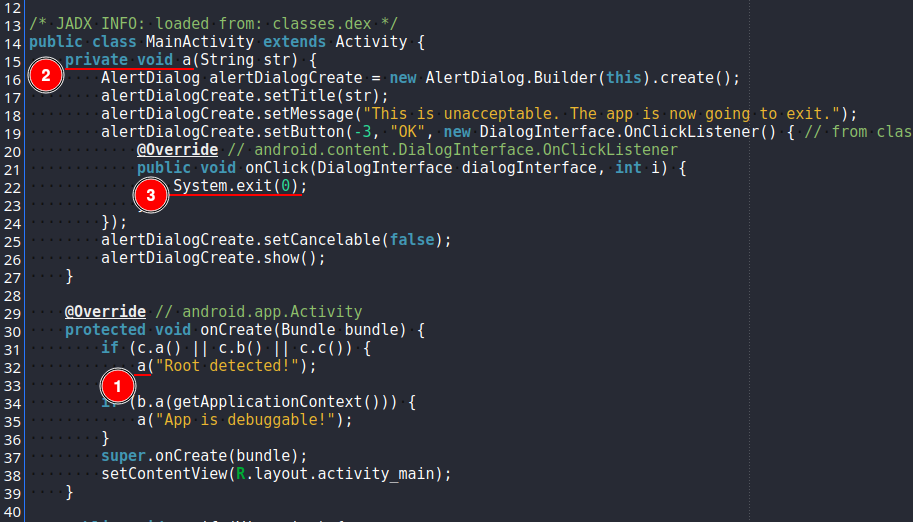

Back in MainActivity.java, after root is detected, the function a is called. That function displays a message and exits the application. This is exactly what we want to remove.

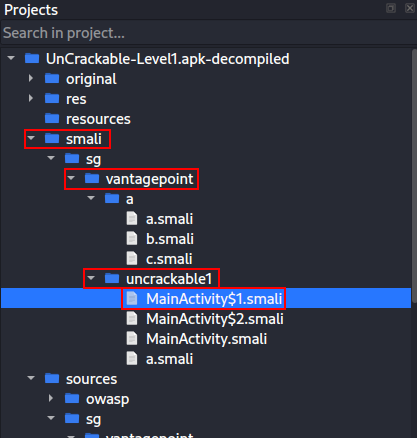

Open the .smali file that contains the exit function. In this case it is MainActivity$1.smali.

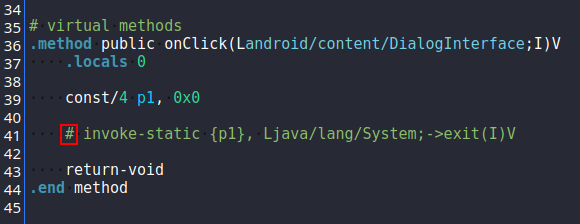

Analyzing the code, we can see a call to System.exit. Comment out this line to prevent the application from closing after root is detected.

In the bottom-left corner, click the hammer icon to build the project.

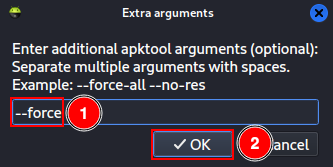

Type --force and click “OK”.

Then click “Project” -> “Sign / export”.

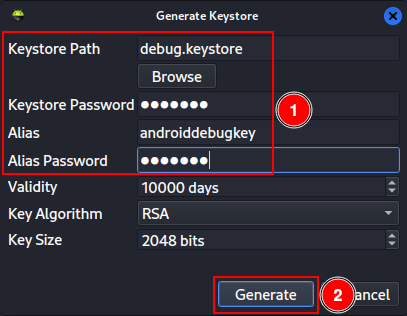

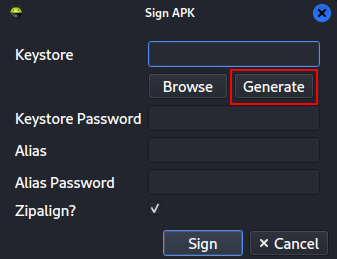

A key is required to sign the APK. Create a new key pair by clicking “Generate”.

Enter the following information and click “Generate”:

• Keystore Path: debug.keystore.

• Keystore Password: android.

• Alias: androiddebugkey.

• Alias Password: android.

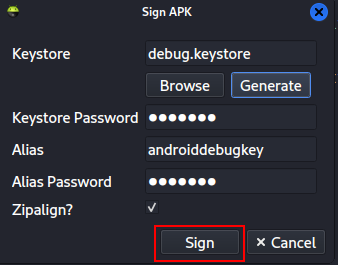

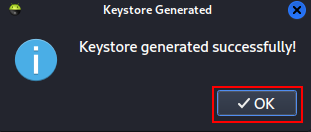

After the keys are generated, click “Sign”.

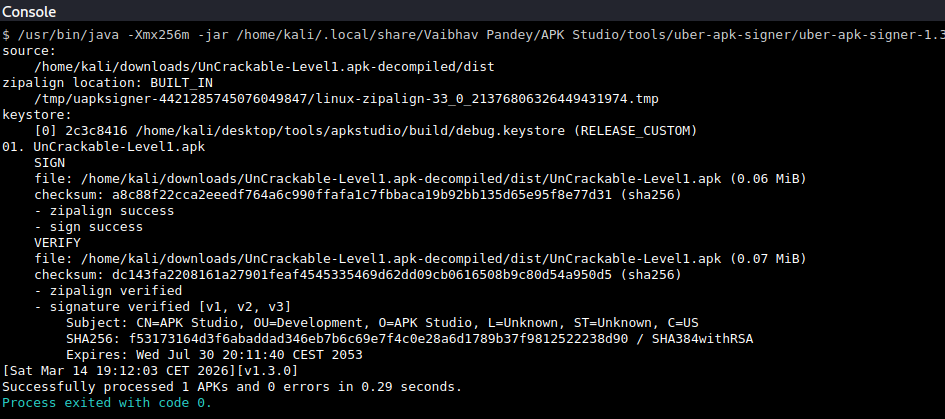

Check the console at the bottom to ensure the process completed successfully with exit code 0.

If you try to install the recompiled app now, you may see an error because the signature differs from the original.

adb -s emulator-5554 install UnCrackable-Level1.apk

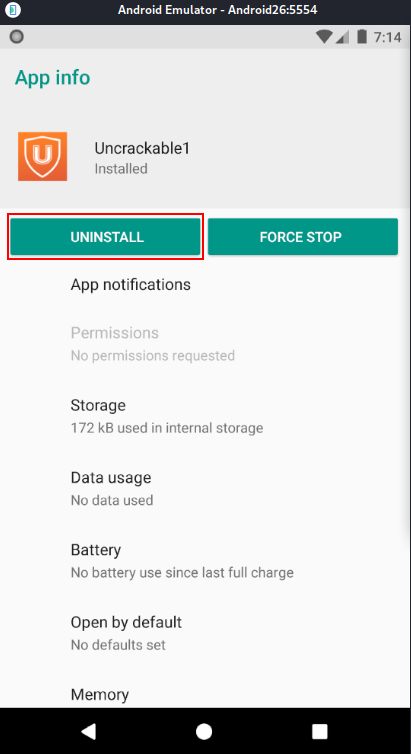

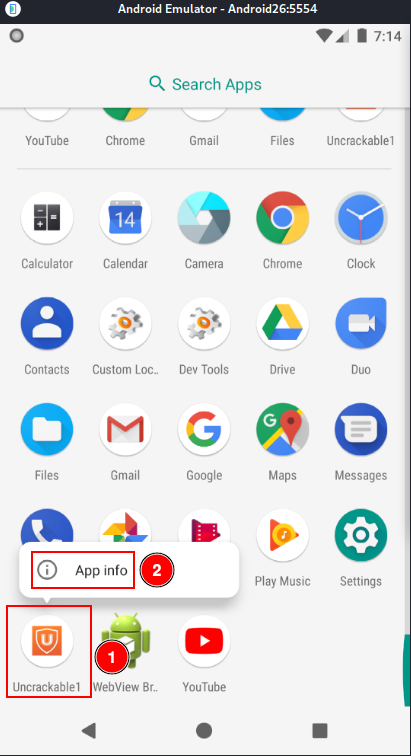

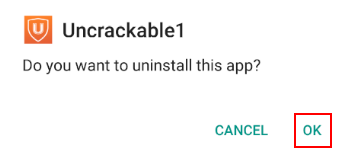

To avoid this, uninstall the original app and then install the modified one.

adb -s emulator-5554 install UnCrackable-Level1.apk

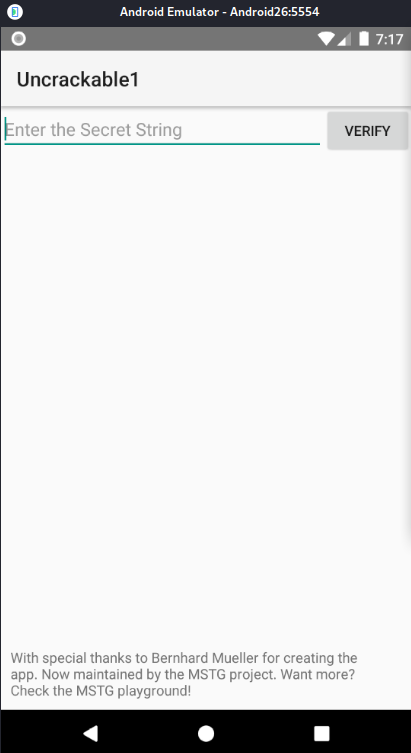

Open the app and observe that several error messages appear, but the application no longer exits due to the changes made.

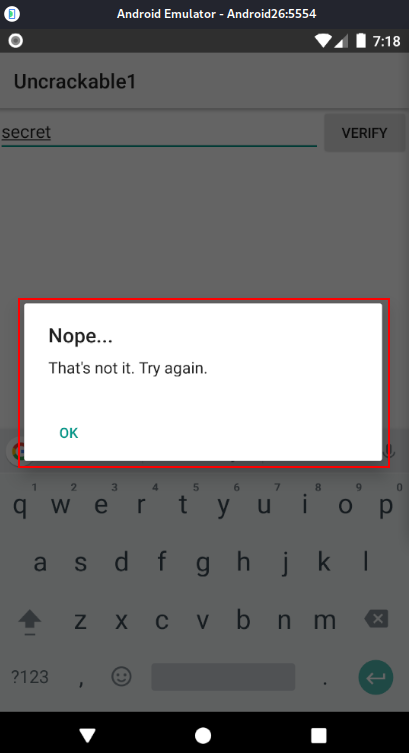

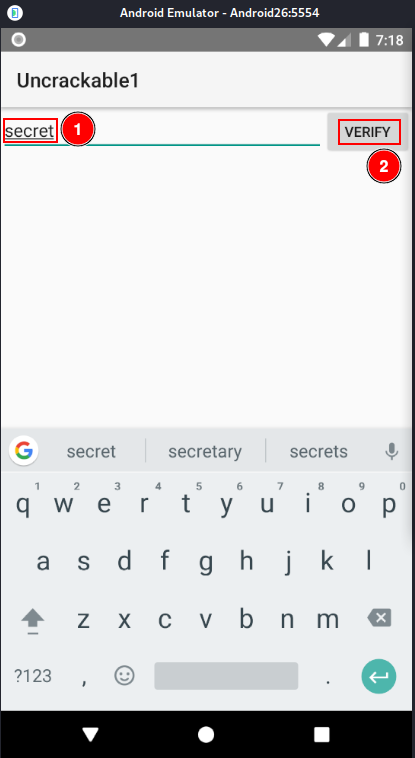

There is a form requesting a secret string. Try using “secret” and click “Verify” to see what happens.

A deeper analysis of the code is required to understand what secret is expected and how to obtain it.

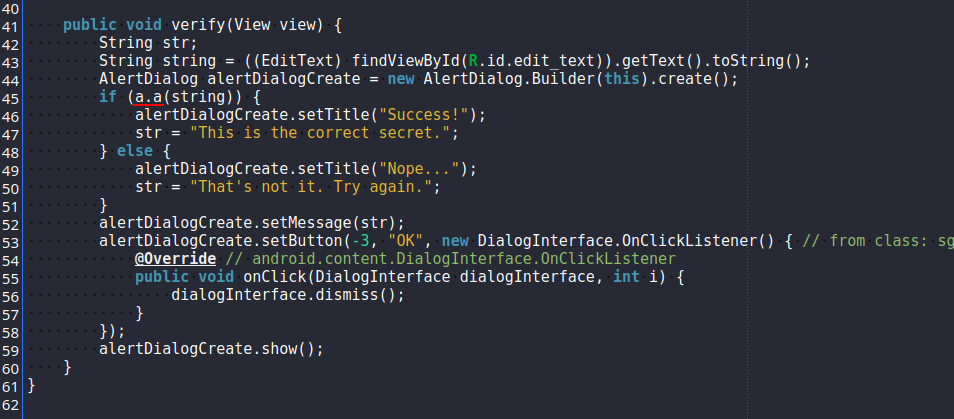

Return to MainActivity.java in APK Studio and check that a.a is validating our secret.

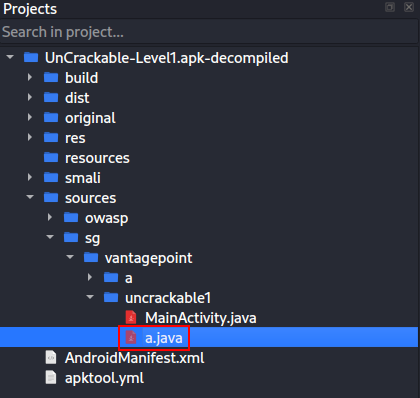

This function is located in the same folder as MainActivity.java.

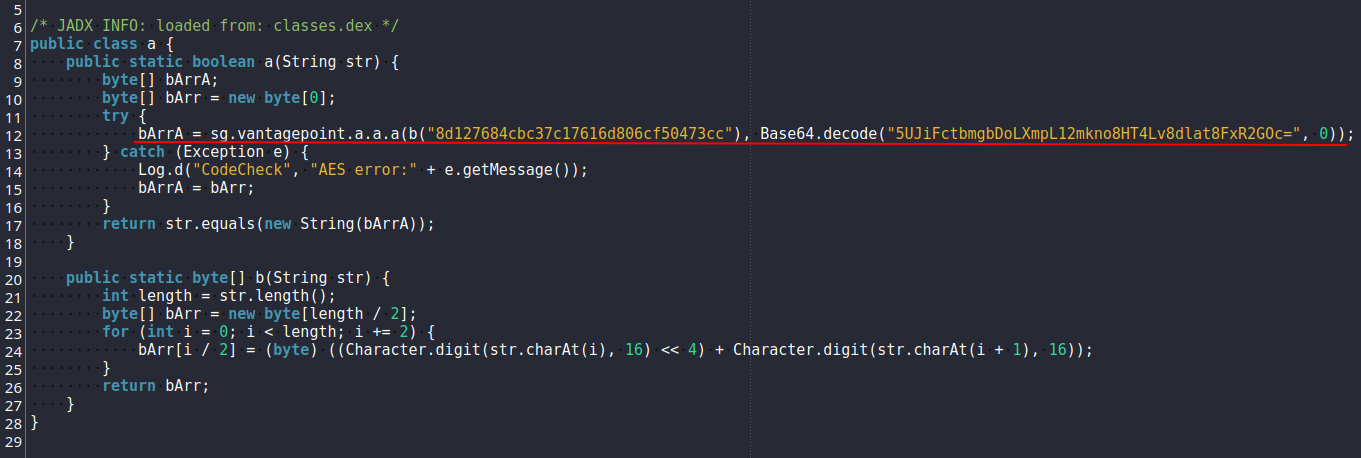

The function uses a hexadecimal key and a Base64 string to verify the secret with AES. The secret is not in plain text, but we have both the Base64 string and the AES decryption key.

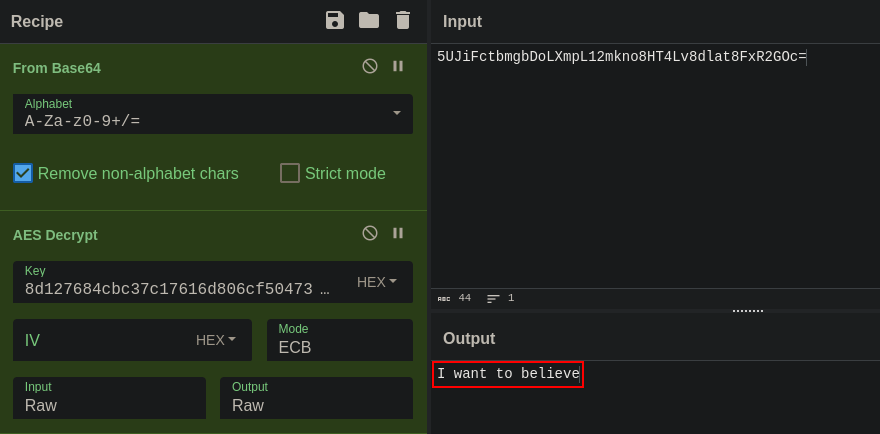

Open CyberChef (https://cyberchef.org), paste the Base64 string, decode it from Base64, and then decrypt it with AES using the hexadecimal key. The secret will be revealed.

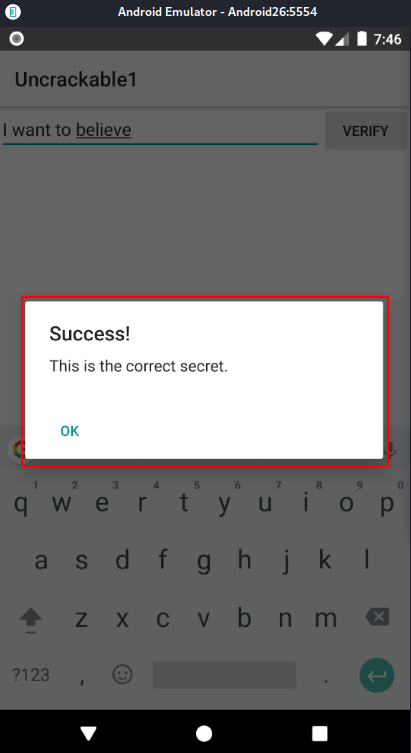

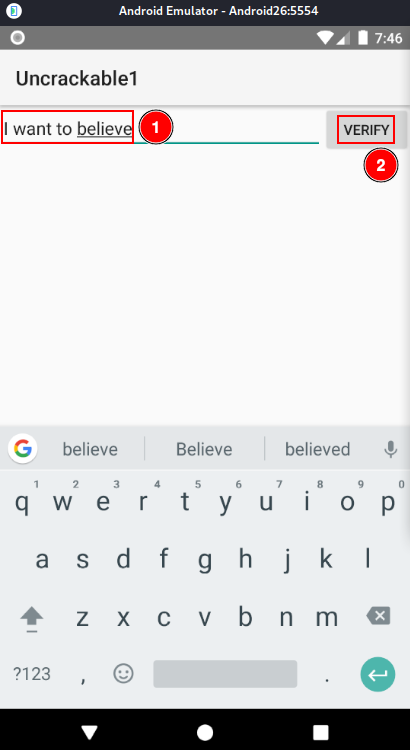

Enter the secret into the app and verify.
