Code Fragment

function isAdult(age) {
  if (age >= 18) {
    console.log("It is an adult");
    return true;
  } else if (age < 0) {
    console.error(`The age "${age}" is incorrect`);
  }
  return false;
}

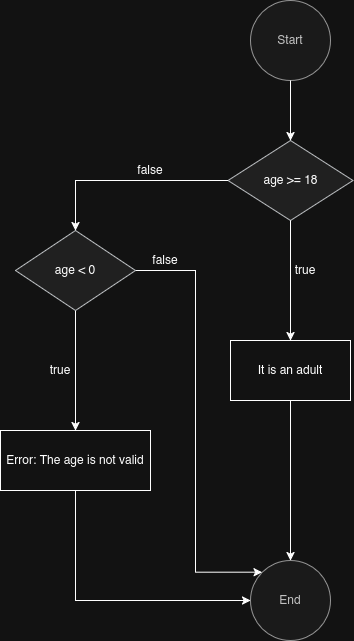

Flow Graph

Cyclomatic Complexity Graph

Calculate V(G)

Cyclomatic Complexity (V(G)) is calculated using the formula:

V(G) = A - N + 2

Where:

  • A is the number of edges

  • N is the number of nodes

Alternatively, we can calculate V(G) using the number of predicates (decision nodes):

V(G) = P + 1

Where:

  • P is the number of decision nodes in the flow.

In our case, we have:

  • 5 nodes: Start, Decision 1 (age >= 18), Decision 2 (age < 0), logging blocks, and End.

  • 2 predicates: age >= 18 and age < 0.

Thus, V(G) = 2 + 1 = 3.

Therefore, the cyclomatic complexity of the function is 3.

Determine Independent Execution Paths

There are 3 independent execution paths:

  1. Path 1: age >= 18 (true) → It is an adult → return true → End.

  2. Path 2: age < 0 (true) → Error: The age is incorrect → End.

  3. Path 3: age >= 18 (false) → age < 0 (false) → return false → End.

Input Values for Each Independent Path

To test each independent path, we use the following input values:

  • Path 1: Test with age = 20 (greater than or equal to 18).

  • Path 2: Test with age = -5 (less than 0).

  • Path 3: Test with age = 15 (between 0 and 18).
